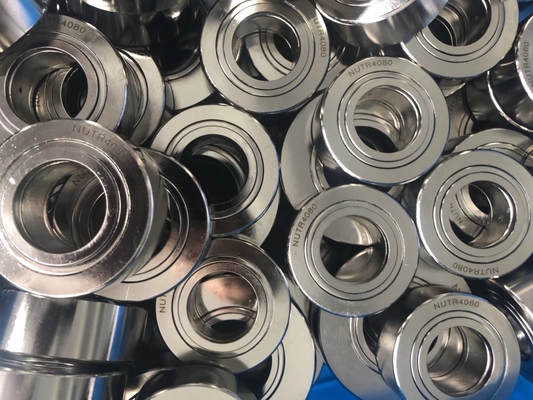

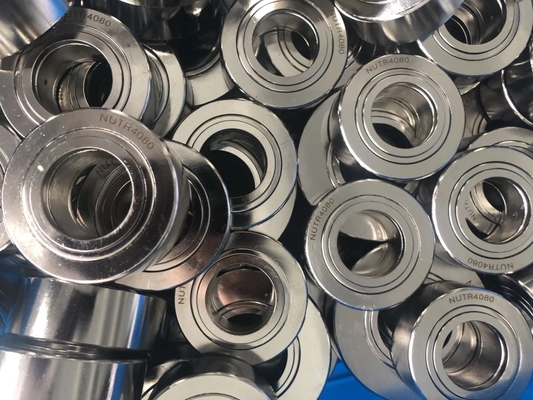

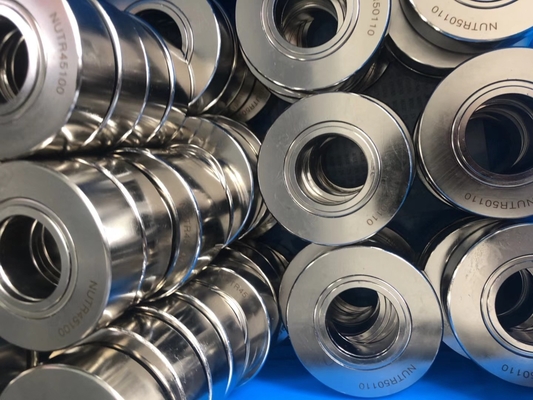

Full complement set yoke type track rollers NUTR15

  • Full complement set yoke type track rollers NUTR15
  • Full complement set yoke type track rollers NUTR15
  • Full complement set yoke type track rollers NUTR15
Lugar de origen Porcelana
Nombre de la marca KORTON
Certificación ISO9001
Número de modelo Nutr15
Cantidad de orden mínima 5 PCS
Precio ASK
Detalles de empaquetado Industrial
Tiempo de entrega 1-3 días
Condiciones de pago T/T, Western Union, Moneygram
Capacidad de la fuente 10000 pcs por mes

Póngase en contacto conmigo para muestras y cupones gratis.

WhatsApp:0086 18588475571

Veloz: 0086 18588475571

Skype: sales10@aixton.com

Si tiene alguna preocupación, ofrecemos ayuda en línea las 24 horas.

x
Datos del producto
Material Acero cromado GCr15
Deja un mensaje
Descripción de producto

Yoke type track rollers NUTR3580

full complement cylindrical roller set, with axial guidance, labyrinth seals on both sides

Full complement set yoke type track rollers NUTR15 0                                    Full complement set yoke type track rollers NUTR15 1

Description:

Yoke type track rollers are single or double row units mounted on shafts or studs. They comprise thick-walled outer rings with a profiled outside surface and needle roller and cage assemblies or full complement needle roller or cylindrical roller sets.

Yoke type track rollers can support high radial loads as well as axial loads arising from slight misalignment and skewed running; they are suitable for applications such as cam gears, bed ways and conveying equipment.

The bearings are available with and without an inner ring and in both sealed and open versions.

Yoke type track rollers with a crowned outside surface are predominantly used in practice since they are often inclined in relation to the mating track and edge stresses must be avoided.

Shaft Diameter Bearing Designation Mass Approx Boudary Dimensions Basic Load Rating Limiting Speed
Co Cor
d D B C D１ As yoke type track rollers
mm Co Cor Oil
g mm N rpm
15 NUTR15 99 15 35 19 18 20 20500 24500 13900 15300 6500
17 NUTR17 147 17 40 21 20 22 21800 28500 16500 20500 5500
15 NUTR15 42 158 15 42 19 18 20 20500 24500 16800 21800 6500
17 NUTR17 47 220 17 47 21 20 20 21800 28500 19000 25000 5500
20 NUTR20 245 20 47 25 24 27 36900 48900 26000 33500 4200
20 NUTR20 52 321 20 52 25 24 27 36900 48900 29800 39800 4200
25 NUTR25 281 25 52 25 24 31 40800 58500 27500 35000 3400
25 NUTR25 62 450 25 62 25 24 31 40800 58500 32500 47800 3400
30 NUTR30 465 30 62 29 28 38 56800 77500 39500 49500 2600
30 NUTR30 72 697 30 72 29 28 38 56800 77500 46000 62800 2600
35 NUTR35 630 35 72 29 28 44 63000 91000 42500 59000 2100
35 NUTR35 80 836 35 80 29 28 44 63000 91000 49500 70500 2100
40 NUTR40 816 40 80 32 30 51 87900 108000 54000 73600 1600
45 NUTR45 883 45 85 32 30 55 93600 119000 54000 77500 1400
40 NUTR40 90 1129 40 90 32 30 51 87900 108000 63800 93600 1600
50 NUTR50 950 50 90 32 30 60 98900 140000 55900 79000 1300
45 NUTR45 100 1396 45 100 32 30 55 93600 119000 70500 106000 1400
50 NUTR50 110 1690 50 110 32 30 60 98900 140000 73600 118000 1300

Full complement set yoke type track rollers NUTR15 2
