Full complement cylindrical roller bearing without outer ring CPM2179

  • Full complement cylindrical roller bearing without outer ring CPM2179
  • Full complement cylindrical roller bearing without outer ring CPM2179
  • Full complement cylindrical roller bearing without outer ring CPM2179
  • Full complement cylindrical roller bearing without outer ring CPM2179
Lugar de origen Porcelana
Nombre de la marca Neutral or OEM
Certificación ISO9001
Número de modelo CPM2179
Cantidad de orden mínima 1 PCS
Precio USD1-5/pcs
Detalles de empaquetado Estándar industrial
Tiempo de entrega 1-3 días hábiles
Condiciones de pago T/t, unión occidental
Capacidad de la fuente 5000 pcs/mes

Póngase en contacto conmigo para muestras y cupones gratis.

WhatsApp:0086 18588475571

Veloz: 0086 18588475571

Skype: sales10@aixton.com

Si tiene alguna preocupación, ofrecemos ayuda en línea las 24 horas.

x
Datos del producto
Fila Doble Muestras gratis Disponible
Número de filas 2 Espesor 28 mm
Grado dinámico de la carga 12.8 kN Autorización C0
Tipo de sello Abierto Calificación de precisión Abec-1
Temperatura de funcionamiento –30 ° C a +120 ° C Tipo Rodillo
Solución de embalaje Las demás partidas de los artículos de la partida 85 Diámetro externo 61.74 mm
Estructura De las partidas de acero Precisión Se aplicará el procedimiento siguiente:
Material de rodamiento 100 % acero cromado
Puede marcar los productos que necesita y comunicarse con nosotros en el tablero de mensajes.
d/mm Dr/mm B/mm J/mm X/mm R min r min Cr kN Cor kN TYPE Bearing NO.
18 32.3 20.5 25.9 14.9 2 0.3 24.1 25.7 A CPM 2699
22 36.2 30 30.8 23 2.5 0.7 47.5 68.8 A CPM 2435
22 38.75 22.5 31 17.3 2 0.3 34.6 38.1 A CPM 2535
22 38.75 22.5 31 17.3 2 0.3 34.6 38.1 A CPM 2834
24 40.25 26 34.3 20 2.5 0.3 44 59.8 A CPM 2400
24 40.25 34 34.3 24 2 2 53.3 76.4 A CPM 2597
25 40.25 26 34.3 20 2.5 0.3 44 59.8 A CPM 2686
25 40.25 32 34.3 24 3 0.3 53.3 76.4 A CPM 2613
28 44.45 34 36.5 27.6 2.5 0.3 70.8 99.8 A CPM 2776
30 46.4 32 38.7 27.6 2 0.3 73.2 105.7 A CPM 2594
30 48.25 40 40.6 32 2.5 2.5 85.8 131.6 A CPM 2687
30 49.6 26 38.6 20 3 0.3 57 70.3 D CPM 2510
30 49.6 24 40 18 3 0.3 50.8 60.6 A CPM 2178
30 49.6 25 40 18.9 3 0.3 50.8 60.6 A CPM 2651
30 49.6 26 40 20 3 0.3 57.1 70.4 A CPM 2198
30 49.6 30 40 24 2.6 0.3 69.1 90 A CPM 2683
32 46.6 25 41 20.5 3 0.3 54.3 82.5 D CPM 2508
32 46.6 28 41 22 3 0.3 54.3 82.5 A CPM 2183
32 46.6 28 41 22 3 0.3 54.3 82.5 A CPM 2439
32 48.24 34 41 27.6 2.5 0.3 76 112 A CPM 2668
32 51.75 25 42.5 19.9 3 0.3 59.1 74.7 A CPM 2496
32 51.75 29 42.5 24 3 0.3 71.5 95.5 A CPM 2579
34 50.2 29 42.5 23.6 2.5 0.3 66.7 96.6 A CPM 2634
35 49.8 28 43.9 22 3 0.3 56.8 89.7 A CPM 2434
35 52.09 26.5 44.5 20.9 2.5 0.3 56.6 79.4 A CPM 2723
35 55.52 36 45 28 0.6 0.6 83.6 113.6 B CPM 2470
35 55.52 36 45 28 0.6 0.6 83.6 113.6 A CPM 2520
35 55.52 36 45 28 2.5 0.3 83.6 113.6 A CPM 2706
35 59.19 27 48.2 21.3 3 0.3 68.4 85.5 A CPM 2721
35 64.3 26.5 52.9 20.9 2.5 0.3 72.9 95.7 A CPM 2528
38 52.95 28 47 22 3 0.3 59.2 97 A CPM 2164
38 52.95 29.5 47.5 21.9 3.2 0.1 59.2 97 A CPM 2504
38 52.95 29.5 48.5 21.9 3.7 0.1 59.2 97 A CPM 2806
38 54.686 29.5 49.5 20.7 4 0.1 56.9 86.7 A CPM 2464
38 54.69 29.5 49.2 21.6 4 0.1 63 99 A CPM 2458
38 57.91 38 48 32 3 0.3 106 156 A CPM 2669
40 57.81 34 50 28 3.2 0.3 96 141 A CPM 2827
40 60.68 31 51.4 25.6 3.2 0.3 80.8 118.1 D CPM 2729
40 61.74 28 50.2 20.9 3 0.3 70.6 90.6 C CPM 2188
40 61.74 35.5 50.2 27.6 2.6 0.3 100 140 A CPM 2650
42 60.75 37 51.5 30.9 3 0.3 100.7 156.9 A CPM 2412
42 60.75 37 51.5 31.6 3 0.3 107.2 169.7 A CPM 2777
44 61.6 34 53.9 28 3.2 0.3 90.1 153 A CPM 2592
44 62.97 37 53.4 30.9 2.5 0.3 103.5 164.4 A CPM 2401
45 61.55 32 53.8 24.9 3 0.3 77.3 125.7 A CPM 2559
45 61.55 36 53.9 28.9 3 0.3 90 153 A CPM 2425
45 65.02 34 54.5 27.3 3 0.3 94.3 140.4 A CPM 2647
45 66.85 37.5 55.8 28.6 3.5 0.3 105.8 156.7 A CPM 2722
45 66.85 37.5 55.8 28.6 3.5 0.3 123 157 A CPM 2828
45 83.88 85 64.2 64.7 1.1 1.1 268 393.9 D CPM 2619
46 69.5 45 56.5 37.3 3.2 0.3 145 207 A CPM 2807
50 67.28 32 61 25.8 3.2 0.3 75.7 145.2 A CPM 2530
50 67.36 40 60.4 32.6 4 1 109 201 A CPM 2720
50 69.58 40 60.3 33.3 3 0.3 118 202 B CPM 2719
50 69.67 32 60.3 24.9 3 0.3 89.1 141 A CPM 2492
50 69.67 37.5 60.3 31.4 2.5 0.3 111.2 186.9 A CPM 2609
50 72.05 37 61.8 28.5 4 0.1 111.7 172.5 A CPM 2466
50 72.33 40 59 33.1 1.1 1.1 130.9 194.3 C CPM 2190
50 72.33 40 59 33.1 1.1 1.1 130.9 194.3 C CPM 2465
Deja un mensaje
d/mm Dr/mm B/mm J/mm X/mm R min r min Cr kN Cor kN TYPE Bearing NO.
Descripción de producto

Bearing No.:CPM2179

Specifications
Inner Diameter - 40.00 MM
Outer Diameter - 61.74 MM
Width - 28.00 MM
Weight - 0.265 kg
Cage - Steel
Seal - No
Bore - Cylindrical
Category - Roller bearings

Full complement cylindrical roller bearing without outer ring CPM2179 0

Full complement cylindrical roller bearing without outer ring CPM2179 1

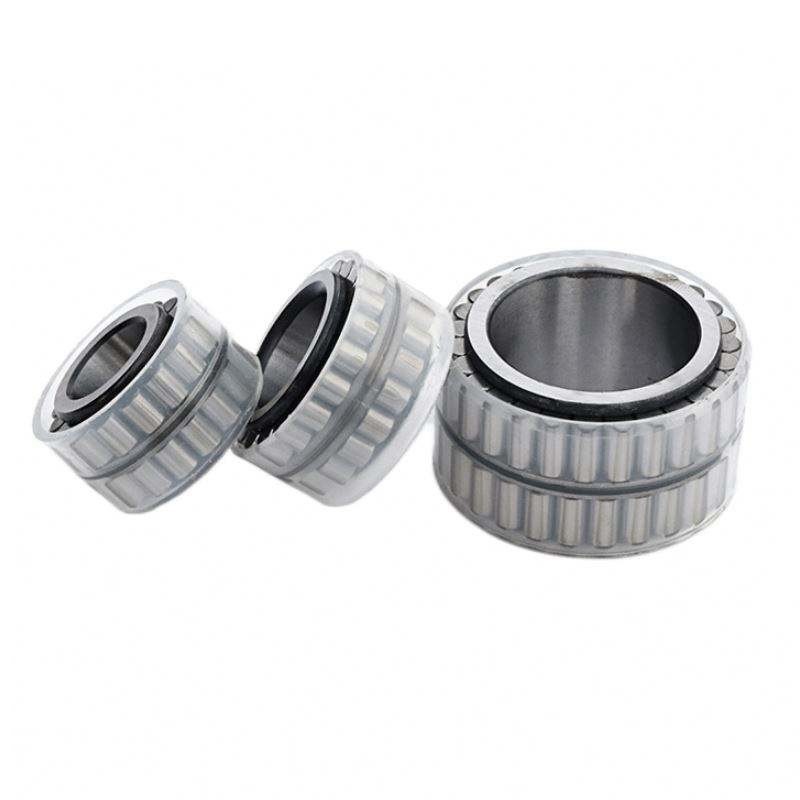

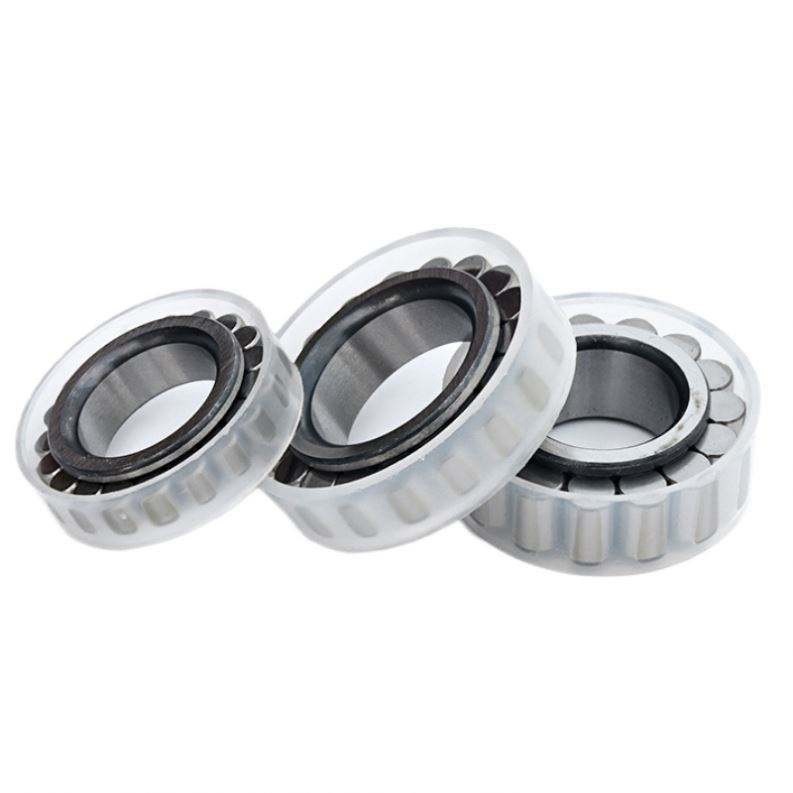

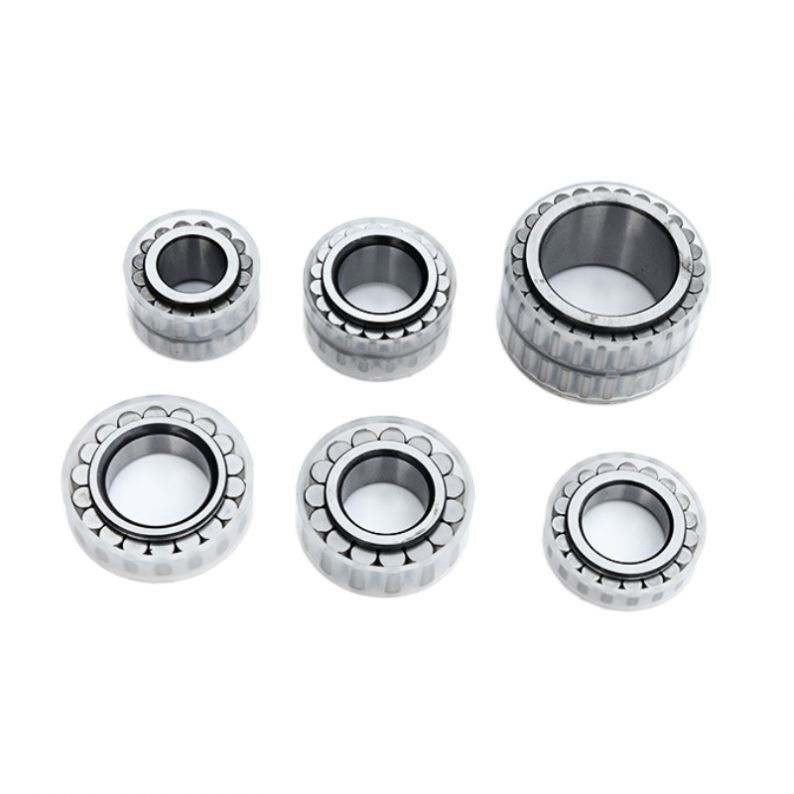

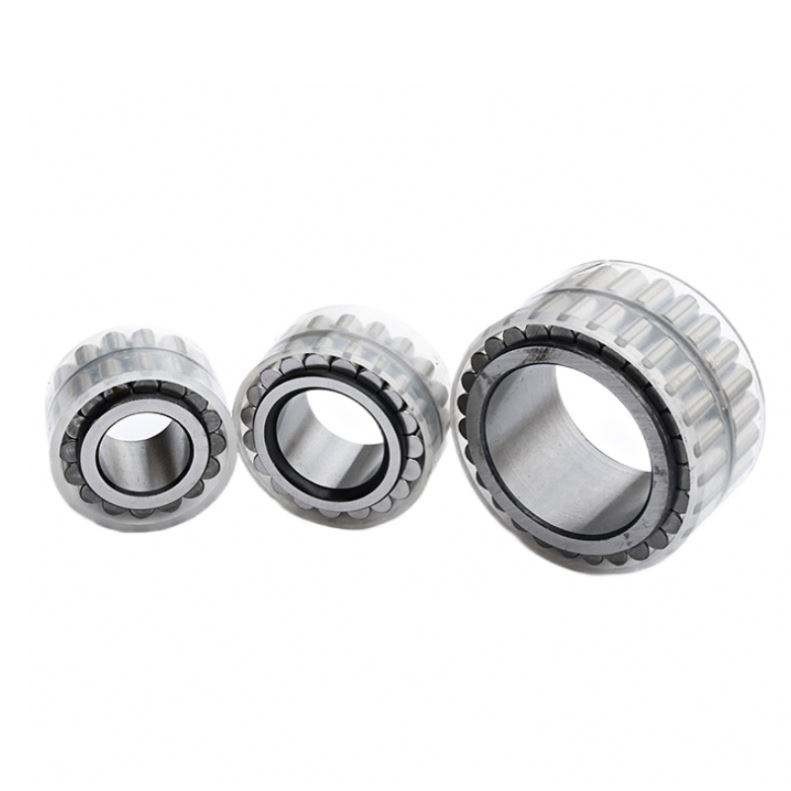

Cylindrical roller bearings can provide axial guidance of the planet.This can be carried out by means of axial washers and retaining rings arranged on both sides of the rolling element .The bearings are available as single row and double row locating bearings. They can support not only high radial forces but also axial forces in both directions and can therefore guide shafts axially in both directions.The bearings are supplied in an open design. They are not greased and can be lubricated with oil or grease.The rolling elements are protected against damage and loss during transport by means of a plastic sleeve.

Full complement cylindrical roller bearing without outer ring CPM2179 2Full complement cylindrical roller bearing without outer ring CPM2179 3Full complement cylindrical roller bearing without outer ring CPM2179 4Full complement cylindrical roller bearing without outer ring CPM2179 5



d/mm Dr/mm B/mm J/mm X/mm R min r min Cr kN Cor kN TYPE Bearing NO.
18 32.3 20.5 25.9 14.9 2 0.3 24.1 25.7 A CPM 2699
22 36.2 30 30.8 23 2.5 0.7 47.5 68.8 A CPM 2435
22 38.75 22.5 31 17.3 2 0.3 34.6 38.1 A CPM 2535
22 38.75 22.5 31 17.3 2 0.3 34.6 38.1 A CPM 2834
24 40.25 26 34.3 20 2.5 0.3 44 59.8 A CPM 2400
24 40.25 34 34.3 24 2 2 53.3 76.4 A CPM 2597
25 40.25 26 34.3 20 2.5 0.3 44 59.8 A CPM 2686
25 40.25 32 34.3 24 3 0.3 53.3 76.4 A CPM 2613
28 44.45 34 36.5 27.6 2.5 0.3 70.8 99.8 A CPM 2776
30 46.4 32 38.7 27.6 2 0.3 73.2 105.7 A CPM 2594
30 48.25 40 40.6 32 2.5 2.5 85.8 131.6 A CPM 2687
30 49.6 26 38.6 20 3 0.3 57 70.3 D CPM 2510
30 49.6 24 40 18 3 0.3 50.8 60.6 A CPM 2178
30 49.6 25 40 18.9 3 0.3 50.8 60.6 A CPM 2651
30 49.6 26 40 20 3 0.3 57.1 70.4 A CPM 2198
30 49.6 30 40 24 2.6 0.3 69.1 90 A CPM 2683
32 46.6 25 41 20.5 3 0.3 54.3 82.5 D CPM 2508
32 46.6 28 41 22 3 0.3 54.3 82.5 A CPM 2183
32 46.6 28 41 22 3 0.3 54.3 82.5 A CPM 2439
32 48.24 34 41 27.6 2.5 0.3 76 112 A CPM 2668
32 51.75 25 42.5 19.9 3 0.3 59.1 74.7 A CPM 2496
32 51.75 29 42.5 24 3 0.3 71.5 95.5 A CPM 2579
34 50.2 29 42.5 23.6 2.5 0.3 66.7 96.6 A CPM 2634
35 49.8 28 43.9 22 3 0.3 56.8 89.7 A CPM 2434
35 52.09 26.5 44.5 20.9 2.5 0.3 56.6 79.4 A CPM 2723
35 55.52 36 45 28 0.6 0.6 83.6 113.6 B CPM 2470
35 55.52 36 45 28 0.6 0.6 83.6 113.6 A CPM 2520
35 55.52 36 45 28 2.5 0.3 83.6 113.6 A CPM 2706
35 59.19 27 48.2 21.3 3 0.3 68.4 85.5 A CPM 2721
35 64.3 26.5 52.9 20.9 2.5 0.3 72.9 95.7 A CPM 2528
38 52.95 28 47 22 3 0.3 59.2 97 A CPM 2164
38 52.95 29.5 47.5 21.9 3.2 0.1 59.2 97 A CPM 2504
38 52.95 29.5 48.5 21.9 3.7 0.1 59.2 97 A CPM 2806
38 54.686 29.5 49.5 20.7 4 0.1 56.9 86.7 A CPM 2464
38 54.69 29.5 49.2 21.6 4 0.1 63 99 A CPM 2458
38 57.91 38 48 32 3 0.3 106 156 A CPM 2669
40 57.81 34 50 28 3.2 0.3 96 141 A CPM 2827
40 60.68 31 51.4 25.6 3.2 0.3 80.8 118.1 D CPM 2729
40 61.74 28 50.2 20.9 3 0.3 70.6 90.6 C CPM 2188
40 61.74 35.5 50.2 27.6 2.6 0.3 100 140 A CPM 2650
42 60.75 37 51.5 30.9 3 0.3 100.7 156.9 A CPM 2412
42 60.75 37 51.5 31.6 3 0.3 107.2 169.7 A CPM 2777
44 61.6 34 53.9 28 3.2 0.3 90.1 153 A CPM 2592
44 62.97 37 53.4 30.9 2.5 0.3 103.5 164.4 A CPM 2401
45 61.55 32 53.8 24.9 3 0.3 77.3 125.7 A CPM 2559
45 61.55 36 53.9 28.9 3 0.3 90 153 A CPM 2425
45 65.02 34 54.5 27.3 3 0.3 94.3 140.4 A CPM 2647
45 66.85 37.5 55.8 28.6 3.5 0.3 105.8 156.7 A CPM 2722
45 66.85 37.5 55.8 28.6 3.5 0.3 123 157 A CPM 2828
45 83.88 85 64.2 64.7 1.1 1.1 268 393.9 D CPM 2619
46 69.5 45 56.5 37.3 3.2 0.3 145 207 A CPM 2807
50 67.28 32 61 25.8 3.2 0.3 75.7 145.2 A CPM 2530
50 67.36 40 60.4 32.6 4 1 109 201 A CPM 2720
50 69.58 40 60.3 33.3 3 0.3 118 202 B CPM 2719
50 69.67 32 60.3 24.9 3 0.3 89.1 141 A CPM 2492
50 69.67 37.5 60.3 31.4 2.5 0.3 111.2 186.9 A CPM 2609
50 72.05 37 61.8 28.5 4 0.1 111.7 172.5 A CPM 2466
50 72.33 40 59 33.1 1.1 1.1 130.9 194.3 C CPM 2190
50 72.33 40 59 33.1 1.1 1.1 130.9 194.3 C CPM 2465
