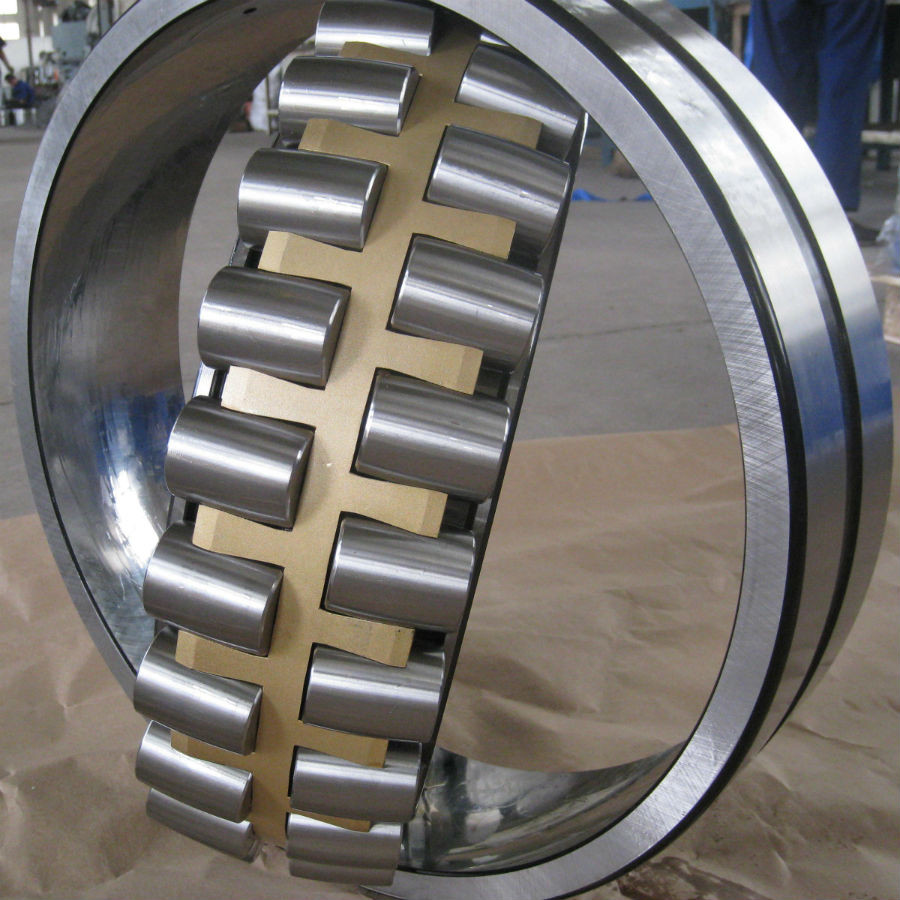

Double row spherical roller bearings 239/500 CA/W33

  • Double row spherical roller bearings 239/500 CA/W33
Lugar de origen Porcelana
Número de modelo 239/500 CA/W33
Cantidad de orden mínima 1
Precio US$4144.65 or Negotiable
Detalles de empaquetado Empaque industrial o solicitud del cliente
Tiempo de entrega 3 días en stock; dentro de los 25 días para la fabricación de pedidos
Condiciones de pago T/T;Western Union;Paypal;L/C

Póngase en contacto conmigo para muestras y cupones gratis.

WhatsApp:0086 18588475571

Veloz: 0086 18588475571

Skype: sales10@aixton.com

Si tiene alguna preocupación, ofrecemos ayuda en línea las 24 horas.

x
Datos del producto
Deja un mensaje
Descripción de producto

Datasheet: Spherical Roller Bearing 239/500CA/W33

Dimensions (metric)/mm d 500
D 670
B 128
Limiting Speed(r/min) 950
Approx. Wgt. kg 130
Bearing with tapered bore 239/500CAK/W33
Raw Material(Inner&outer ring) Bearing Steel GCR15
Cage Material Brass
Cage Style CC;CA;MB

Double row spherical roller bearings 239/500 CA/W33 0            Double row spherical roller bearings 239/500 CA/W33 1               Double row spherical roller bearings 239/500 CA/W33 2

      Tapered Bore-1:12

This series is available in tapered bore - suffix "K" (taper 1:12).
1) Suffix "W/33" - lubrication groove and holes in outer ring.
2) C/3, C/4, and C/5 internal clearances are also available.

Unide Bearing supply spherical roller bearing 239/500CA/W33with good price.If you are demanding 239/500CA/W33,please do not hesitate to contact us.we will supply laest price for you.

Spherical Roller Bearings
1) Series: 21300 series, 22200 series, 22300 series, 23100 series, 23200series,
24000 series, 24100 series and 23900 series
2) Material of rings and rollers: chrome steel; GCr15 and GCr15SiMn
3) Material of cages: brass, steel and nylon
4) Precision: P0, P6
5) Suffixes:
a) CA: integral brass cage, double row symmetrical rollers, inner ring ride
b) MA: integral brass cage, double row symmetrical rollers, outer ring ride
c) MB: two piece brass cage, double row asymmetrical rollers, inner ring ride
d) CC: two piece steel cage, double row symmetrical rollers, inner ring ride
e) CTN1: double row symmetrical rollers, nylon cage
f) K: tapered bore bearing, the taper is 1:12
g) K30: tapered bore bearing, the taper is 1:30
h) W33: with lubrication groove in outer ring, with three oil holes
i) C2/C3/C4: Internal clearance series: C2, C0, C3, and C4
6) Application:
Used in agricultural machine such as combined harvesting machine, air-blower, paper-machine,
textile machine, woodworking machinery, overhead crane moving wheel and driving shaft
