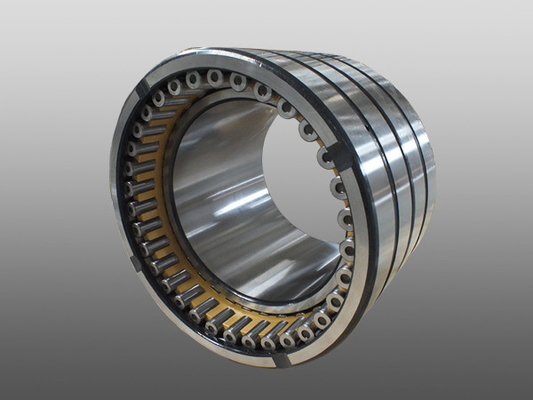

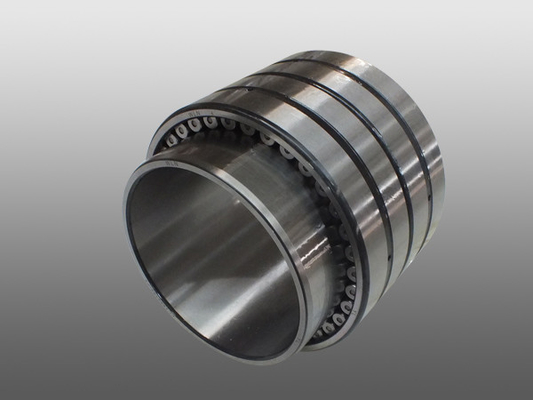

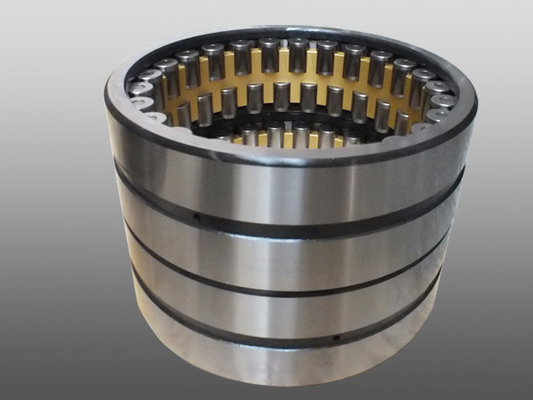

Four row cylindrical roller bearing for interference fit on the roll neck 527104

  • Four row cylindrical roller bearing for interference fit on the roll neck 527104
  • Four row cylindrical roller bearing for interference fit on the roll neck 527104
  • Four row cylindrical roller bearing for interference fit on the roll neck 527104
  • Four row cylindrical roller bearing for interference fit on the roll neck 527104
Lugar de origen Porcelana
Nombre de la marca Neutral or OEM
Certificación ISO9001
Número de modelo 527104
Cantidad de orden mínima 1 PCS
Precio USD1-500 per pcs
Detalles de empaquetado Empaque industrial o solicitud del cliente
Tiempo de entrega 1-3 días hábiles para productos listos
Condiciones de pago T/t, unión occidental
Capacidad de la fuente 5000 pcs/mes

Póngase en contacto conmigo para muestras y cupones gratis.

WhatsApp:0086 18588475571

Veloz: 0086 18588475571

Skype: sales10@aixton.com

Si tiene alguna preocupación, ofrecemos ayuda en línea las 24 horas.

x
Datos del producto
Tipo de sello Abierto Número de fila Cuatro filas
Diámetro 280 milímetros Diámetro exterior 390 milímetros
Ancho 275mm F (diámetro exterior del anillo interno) 308 milímetros
Peso 105 KG
Deja un mensaje
Descripción de producto

Four row cylindrical roller bearing for rolling mills 527104

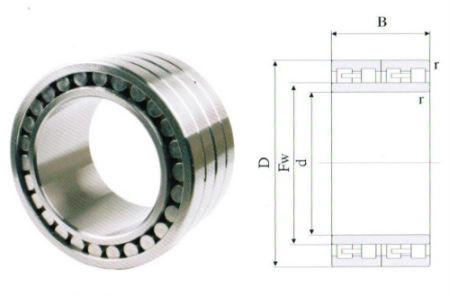

Bearing Main Dimension(mm) Load Rating(kN) Mass
Design d D B F Dyn.C Stat.Co kg
527104 280 390 275 308 2424 6350 105
527104 FAG code
314719C code
4R5612 NTN code
  NSK code
FCD5678275 China Code

Four row cylindrical roller bearings can carry much heavier radial load and shock load. They have higher precision and can be applied in the equipment which runs with high rotational speed. Grinding the surface of raceway and roller at same time after the inner ring is pressed on roller neck, it favors the improvement of rolling precision and the free adjustment of mounting clearance of bearings. These bearings are mostly applied to the working roller and backup roller of rolling mills and some other cases.
FC: double outer rings, single inner ring, and inner without flange.
FCD: double outer rings, double inner rings, and inner ring without flange.
FCDP: double outer rings, only have center flange, but with loose rib, double inner ring, inner without flange.

Interchangeable Table

Fag code Fag old code  code Nsk-code   Ntn-code   Koyo-code
Z-502894.02.ZL 502894B 314190 160RV2301 4R3226 314190
Z-504547.ZL 504547 635194
Z-506962.ZL 506962 313891A 150RV2302 4R3040 313891-1
Z-507333.ZL 507333 313839 220RV3101 4R4426 313837A
Z-507336.ZL 507336 313823 260RV3701 4R5208 313823
Z-507339.ZL 507339 313822 280RV3901 4R5611 313822
Z-507344.ZL 507344 314385 200RV2804 4R4048 40FC28170
Z-507536.ZL 507536 313812 180RV2601 4R3628 313812W
Z-507735.ZL 507735 313651 190RV2601 4R3820 38FC26168-1
Z-508657.ZL 508657 314199B 190RV2701 4R3821 314199
Z-508726.ZL 508726 313893 200RV2802
Z-508727.ZL 508727 313824 230RV3301 4R4610 313824
Z-510150.02.ZL 510150B* 315189A 160RV2302 4R3232
Z-511605.ZL 511605 314625 145RV2101 4R2906 29FC21155
Z-512580.ZL 512580 313811 200RV2901 4R4041 313811
Z-512764.ZL 512764 313924A 145RV2201 4R2904 313924
Z-522742.ZL 522742 314553   4R4039 314553
Z-524289.02.ZL 524289B* 314484D 300RV4221 4R6020 4CR300
Z-527104.ZL 527104 314719 280RV3903
Z-527634.ZL 527634 314485 340RV4801 4R6819 68FC48350D
Z-529468.N12BA   529468.N12BA 315642/VJ202
Z-543975.ZL 543975 314486A 370RV5211
Z-804868.ZL-N12BA   804868.N12BA 314997VJ/202

Note:

1.Unide Beating Promise The Raw Material of All Products is Adopted High-grade Bearing Steel

2.Tolerance P0;P6;P5;P4;P2 as clients request is satisfied



Pictures show of related rolling mill bearings:

Four point angular contact ball bearings

Four row cylindrical roller bearing for interference fit on the roll neck 527104 0



Double row angular contact ball bearings

Four row cylindrical roller bearing for interference fit on the roll neck 527104 1



Deep groove ball bearings

Four row cylindrical roller bearing for interference fit on the roll neck 527104 2



Doule direction taper roller thrust bearings

Four row cylindrical roller bearing for interference fit on the roll neck 527104 3
