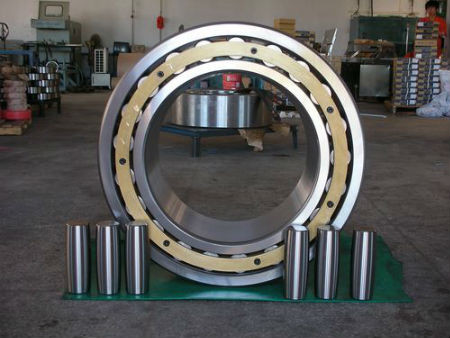

C3984M CARB toroidal roller bearings cylindrical and tapered bore

  • C3984M CARB toroidal roller bearings cylindrical and tapered bore
Lugar de origen Porcelana
Certificación ISO9001
Número de modelo C3984m
Cantidad de orden mínima 1
Detalles de empaquetado Industrial/personalizado
Tiempo de entrega 3-5 días en stock; dentro de los 20 días de fabricación de pedidos
Condiciones de pago T/T; Western Union; Paypal
Capacidad de la fuente 10000 pcs/mes

Póngase en contacto conmigo para muestras y cupones gratis.

WhatsApp:0086 18588475571

Veloz: 0086 18588475571

Skype: sales10@aixton.com

Si tiene alguna preocupación, ofrecemos ayuda en línea las 24 horas.

x
Datos del producto
Deja un mensaje
Descripción de producto

C3984M CARB Toroidal Roller Bearing datasheet:

Bearing Name C3984M CARB Bearings
Bearing Model C3984M
Bore Structure Cylindrical
Tapered Bore C3984KM
d 420 mm
D 560 mm
B 106 mm
Dynamic(C) 2160 kN
Static(Co) 4250 kN
Weight 71 kg

Cages

*an injection moulded window-type cage of glass fibre reinforced polyamide 4,6, roller centred, designation suffix TN9

*a pressed window-type steel cage, roller centred, no designation suffix

*a machined window-type brass cage, roller centred, designation suffix M

*a two-piece machined brass cage, inner ring centred, designation suffix MB

Main application areas

• Steelmaking and rolling mills• Conveyors and roller beds• Paper machines• Fans, blowers, pumps• Crushers• Gearboxes of all types• Textile machines• Food and beverage processing machines• Agricultural machinery• Vibrating screens

Designation Suffixes

C2-- Radial internal clearance smaller than Normal

C3-- Radial internal clearance larger than Normal

C4-- Radial internal clearance larger than C3

C5-- Radial internal clearance larger than C4

CS5-- Sheet steel reinforced contact seal of hydrogenated acrylonitrile-butadiene rubber (HNBR) on one side of the bearing

2CS5-- CS5 contact seal on both sides of the bearing. Free space in the bearing filled between 70 and 100% with a high temperature grease.

HA3-- Case-hardened inner ring

K-- Tapered bore, taper 1:12

K30-- Tapered bore, taper 1:30

M-- Machined window-type brass cage, roller centred

MB-- Two-piece machined brass cage, inner ring centred

TN9-- Injection moulded window-type cage of glass fibre reinforced polyamide 4,6, roller centred

V-- Full complement of rollers (no cage)

VE240-- Bearing modified for greater axial displacement

VG114-- Surface hardened steel cage, roller centred

CARB Bearings drawing:

C3984M CARB toroidal roller bearings cylindrical and tapered bore 0

C3984M CARB toroidal roller bearings cylindrical and tapered bore 1

C3984M CARB toroidal roller bearings cylindrical and tapered bore 2 C3984M CARB toroidal roller bearings cylindrical and tapered bore 3
