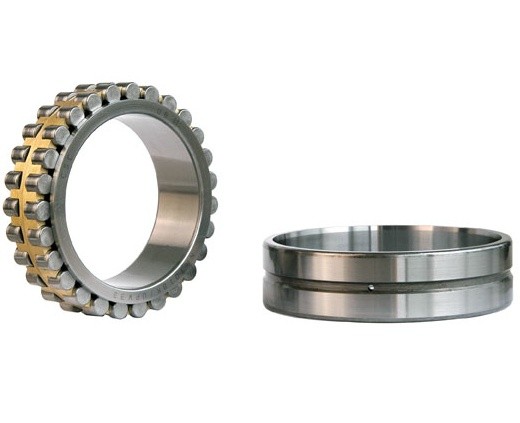

NN3009K/SP cylindrical roller bearings 45x75x23mm

  • NN3009K/SP cylindrical roller bearings 45x75x23mm
Lugar de origen Porcelana
Certificación ISO9001
Número de modelo Nn3009 km
Cantidad de orden mínima 1 PCS
Precio ASK
Detalles de empaquetado Industrial
Tiempo de entrega 3-5 días para acciones; dentro de los 15 días por orden de producción
Condiciones de pago T/t; l/c; Unión occidental; PayPal
Capacidad de la fuente 5000 pcs/mes

Póngase en contacto conmigo para muestras y cupones gratis.

WhatsApp:0086 18588475571

Veloz: 0086 18588475571

Skype: sales10@aixton.com

Si tiene alguna preocupación, ofrecemos ayuda en línea las 24 horas.

x
Datos del producto
Calificación de precisión P5; P4; P2 Número de fila Fila doble
Deja un mensaje
Descripción de producto

Cylindrical roller bearings,double row,NN series,tapered bore 1:12,separable,with cage

Bearing No.NN3009K/SPNN3009K/SP cylindrical roller bearings 45x75x23mm 0
Main Dimensionmm
Inside Dia-d45
Outside Dia-D75
Width-B23
Mass(kg)0.393
OEM ServiceYes
Bearing NameDouble row cylindrical roller bearings
CageM-Brass
ClearanceC0;C2;C3;C4
ToleranceP5;P4
StructureCylindrical
Interchange
FAGNN3009-AS-K-M-SP
NTN
NSK
KOYO


 NN3009K/SP cylindrical roller bearings 45x75x23mm 1

Cylindrical roller bearings without outer ring capped edge

The NU cylindrical roller bearing has double capped edges on outer ring and without capped edge on inner ring
The N cylindrical roller bearing has double capped edges on inner ring and without capped edge on outer ring
The NU and N cylindrical roller bearings, the shaft is allowed two-way displacement toward the bearing box, i.e. the cylindrical roller bearings can bear the change of shaft length due to thermal expansion. Thus It is suitable to serve as a non-fixed bearing. It can bear larger radial load, but cannot take axial load.

Cylindrical roller bearings with capped edge on both outer ring and inner
The NJ cylindrical roller bearing has double capped edge on outer ring and single capped edge on inner ring.
The NF cylindrical roller bearing with the single capped edge on outer ring & double capped edges on inner ring
The NJ & NF cylindrical roller bearing, the axial-displacement of the shaft or housing on one-direction can be limited. The one-direction axial positioning can be reached. It can burden smaller axial load from one-direction.
The NUP cylindrical roller bearing with double capped edges on the outer ring & with capped edge on one side of the inner ring, as well as with inner ring loose rib on the other side of the inner ring. The two-way axial positioning toward the shaft can be reached. The bearing can bear two-way axial force. The NUP & N cylindrical roller bearings can be chosen for the structure. The NJ and HJ cylindrical roller bearing with separate thrust collar is similar to the NUP cylindrical roller bearing, it can be used as the fixed (positioning) bearing.

Cylindrical roller bearings without inner ring or without outer ring
The RNU cylindrical roller bearing has an outer ring with double capped edges but does not come with inner ring. Such bearing is the NU cylindrical roller bearings without the inner ring
The RN cylindrical roller bearing has an inner ring with double capped edge but does not come with outer ring.
The RNU and RN cylindrical roller bearing are used with a component having a limitation on radial dimension. The axial journal or the surface of the housing bore can be used as the raceways. The hardness and the machining precision as well as the surface quality should be same as the raceways of the inner ring and the outer ring.

Single row cylindrical roller bearing NU,NJ,NUP,N designsNN3009K/SP cylindrical roller bearings 45x75x23mm 2
NN3009K/SP cylindrical roller bearings 45x75x23mm 3Double row cylindrical roller bearings,NN and NNU designs
NN3009K/SP cylindrical roller bearings 45x75x23mm 4Single row full complement cylindrical roller bearing,NCF and NJG designs
NN3009K/SP cylindrical roller bearings 45x75x23mm 5Double row full complement cylindrical roller bearing,NNF design
NN3009K/SP cylindrical roller bearings 45x75x23mm 6Four row cylindrical roller bearing
NN3009K/SP cylindrical roller bearings 45x75x23mm 7Six row cylindrical roller bearing
