NU344 M cylindrical roller bearing,single row,ABEC-1,220*460*88

  • NU344 M cylindrical roller bearing,single row,ABEC-1,220*460*88
Lugar de origen Porcelana
Nombre de la marca Neutral or OEM
Número de modelo Nu344m
Cantidad de orden mínima 1
Detalles de empaquetado Empaque industrial o solicitud del cliente
Tiempo de entrega 3 días para el número de existencias; dentro de los 20 días por fabricación de pedidos
Condiciones de pago T/T; Western Union; Paypal

Póngase en contacto conmigo para muestras y cupones gratis.

WhatsApp:0086 18588475571

Veloz: 0086 18588475571

Skype: sales10@aixton.com

Si tiene alguna preocupación, ofrecemos ayuda en línea las 24 horas.

x
Datos del producto
Calificación de precisión Abec-1 Número de fila Fila única
Deja un mensaje
Descripción de producto

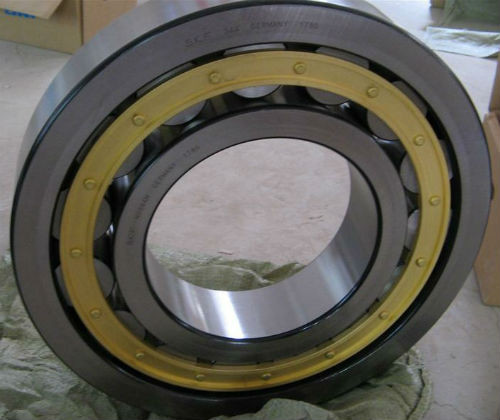

NU344M Cylindrical Roller Bearing

d=220 mm             Inside Dia

D=460 mm            Outside Dia

B=88 mm               Width

m=72.5 kg              Mass

Cr= 1210 kN             Basic dynamic load rating, radial

Cor=1630 kN            Basic static load rating, radial

nG= 1500 r/min      Limiting speed,Grease lub

nG= 1700 r/min      Limiting speed,Oil lub

Cylindrical Roller Bearing

NU344 M cylindrical roller bearing,single row,ABEC-1,220*460*88 0

Cylindrical roller bearings without outer ring capped edge

The NU cylindrical roller bearing has double capped edges on outer ring and without capped edge on inner ring
The N cylindrical roller bearing has double capped edges on inner ring and without capped edge on outer ring
The NU and N cylindrical roller bearings, the shaft is allowed two-way displacement toward the bearing box, i.e. the cylindrical roller bearings can bear the change of shaft length due to thermal expansion. Thus It is suitable to serve as a non-fixed bearing. It can bear larger radial load, but cannot take axial load.

Cylindrical roller bearings with capped edge on both outer ring and inner
The NJ cylindrical roller bearing has double capped edge on outer ring and single capped edge on inner ring.
The NF cylindrical roller bearing with the single capped edge on outer ring & double capped edges on inner ring
The NJ & NF cylindrical roller bearing, the axial-displacement of the shaft or housing on one-direction can be limited. The one-direction axial positioning can be reached. It can burden smaller axial load from one-direction.
The NUP cylindrical roller bearing with double capped edges on the outer ring & with capped edge on one side of the inner ring, as well as with inner ring loose rib on the other side of the inner ring. The two-way axial positioning toward the shaft can be reached. The bearing can bear two-way axial force. The NUP & N cylindrical roller bearings can be chosen for the structure. The NJ and HJ cylindrical roller bearing with separate thrust collar is similar to the NUP cylindrical roller bearing, it can be used as the fixed (positioning) bearing.
Cylindrical roller bearings without inner ring or without outer ring
The RNU cylindrical roller bearing has an outer ring with double capped edges but does not come with inner ring. Such bearing is the NU cylindrical roller bearings without the inner ring
The RN cylindrical roller bearing has an inner ring with double capped edge but does not come with outer ring.
The RNU and RN cylindrical roller bearing are used with a component having a limitation on radial dimension. The axial journal or the surface of the housing bore can be used as the raceways. The hardness and the machining precision as well as the surface quality should be same as the raceways of the inner ring and the outer ring.
