Four row cylindrical roller bearing FC4462192 for rolling mills

  • Four row cylindrical roller bearing FC4462192 for rolling mills
Lugar de origen Porcelana
Nombre de la marca Neutral or OEM
Certificación ISO9001
Número de modelo Las demás medidas
Cantidad de orden mínima 1 PCS
Precio US$215.00
Detalles de empaquetado Empaque industrial o solicitud del cliente
Tiempo de entrega 3 días en stock; dentro de los 20 días personalizados
Condiciones de pago T/T;Western Union;Paypal;L/C
Capacidad de la fuente 5000 pcs/mes

Póngase en contacto conmigo para muestras y cupones gratis.

WhatsApp:0086 18588475571

Veloz: 0086 18588475571

Skype: sales10@aixton.com

Si tiene alguna preocupación, ofrecemos ayuda en línea las 24 horas.

x
Datos del producto
Deja un mensaje
Descripción de producto

Four Row Cylindrical Roller Bearing FC4462192

Bearing name: FC4462192 bearings
New Model: FC4462192
Old Modle: 672744
bearing: 313839
FAG bearing: 507333
NTN bearing: 4R4426
NSK bearing: 200RV3101
d : 220mm
D : 310mm
B : 192mm
Fw : 246mm
Load Rating(kN)
Dyn.C 1680
Stat Co 3650
Weight(kg) 46
Bearing class: Cylindrical Roller Bearings, Four Row
Remarks: Please contact us for other detail
Bearing Inventory 100 pcs



Order Information:

1.complete set FC4462192(one single inner ring&double outer ring cage and roller assembly)

2.separable inner ring and separable outer cage and roller assembly are also available.

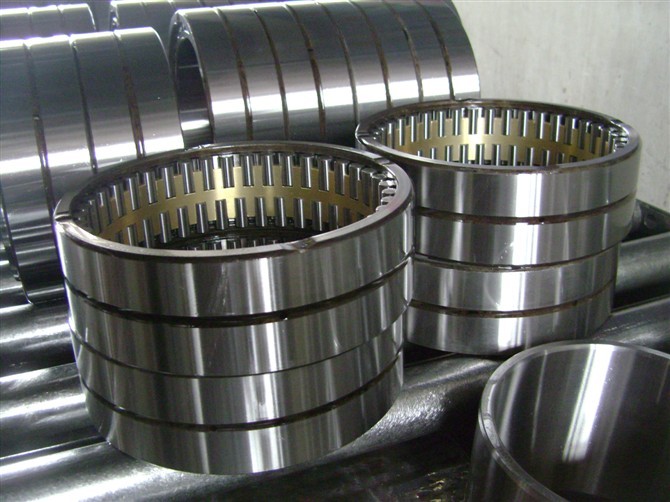

Four row cylindrical roller bearing FC4462192 for rolling mills 0

Four row cylindrical roller bearing FC4462192 for rolling mills 1

Four row cylindrical roller bearings can carry much heavier radial load and shock load. They have higher precision and can be applied in the equipment which runs with high rotational speed. Grinding the surface of raceway and roller at same time after the inner ring is pressed on roller neck, it favors the improvement of rolling precision and the free adjustment of mounting clearance of bearings. These bearings are mostly applied to the working roller and backup roller of rolling mills and some other cases.
FC: double outer rings, single inner ring, and inner without flange.
FCD: double outer rings, double inner rings, and inner ring without flange.
FCDP: double outer rings, only have center flange, but with loose rib, double inner ring, inner without flange.

Bearing No Dimension(mm) Basic Loading(kN) Mass(kg)
dxDxB Dyn.(Cr) Stat.(Cor)
FC2640125 130x200x125 530 1200 14.6
FC3045120 150x225x120 702 1408 16.2
FC3246130 160x230x130 665 1705 16.9
FC3248124 160x240x124 685 1530 20.3
FC3248168 160x240x168 1042 2310 26.7
FCD3446160 170x230x160 1100 2360 20
FC3452120 170x260x120 660 1790 24.6
FC3652124 180x260x124 735 1730 21.7
FC3652168 180x260x168 1070 2790 30.2
FC3652168/YA3 180x260x168 1070 2790 30.1
FC3854168 190x270x168 950 2430 30.2
FC3854168/YA3 190x270x168 950 2430 29.9
FC3854170/YA3 190x270x200 950 2430 30.2
FC4056188 200x290x192 985 2580 35.7
FC4462192/YA3 220x310x192 1300 1910 45.8
FC4462225 220x320x210 1450 4050 53.9
FC4666206/YA3 230x330x206 1350 3800 56.5
FC4866220/YA3 240x330x220 1620 4850 56.5
FC4866220 240x330x220 1620 4850 56.7
FC4872220 240x360x200 1700 4410 78
FC4872220A/C4YA3 240x360x200 1700 4410 78
FC5072220/YA3 250x360x220 1500 4250 76.9
FC5274200 260x370x200 1570 4250 73
FC5274220/YA3 260x370x220 1760 4900 79.2
FC5274220 260x370x220 1760 4900 80
FC5476230/YA3 270x380x230 1720 4800 80.2
FC5478230 270x390x236 2100 5950 97.8
FC5678220 280x390x220 1790 5150 86.5
FCDP5678275 280x390x275 2200 6250 102
FC6490240/YA3 320x450x240 2460 6720 119
FCD72102370 360x510x370 3850 11400 220
FCDP74104380 370x520x380 3900 12000 296
FCDP88124450 440x620x450 5200 15800 452
FCDP88124450/YA6 440x620x450 5200 15800 452
FCD96130450 480x650x450 4750 15400 419
