FAG NN3018-AS-K-M-SP Cylindrical Roller Bearings,Double Row

  • FAG NN3018-AS-K-M-SP Cylindrical Roller Bearings,Double Row
Lugar de origen Alemania
Nombre de la marca FAG
Número de modelo Nn3018-as-km-sp
Cantidad de orden mínima 1
Detalles de empaquetado Cinturón de color+estuche de madera
Tiempo de entrega 3 días en stock; dentro de los 20 días para la fabricación de pedidos
Condiciones de pago T/T; Western Union; Paypal
Capacidad de la fuente 10000 pcs/mes

Póngase en contacto conmigo para muestras y cupones gratis.

WhatsApp:0086 18588475571

Veloz: 0086 18588475571

Skype: sales10@aixton.com

Si tiene alguna preocupación, ofrecemos ayuda en línea las 24 horas.

x
Datos del producto
Deja un mensaje
Descripción de producto

FAG NN3018-AS-K-M-SP Cylindrical Roller Bearings,Double Row,with cage,separable,tapered bore 1:12

Bearing Model NN3018-AS-K-M-P
Brand FAG
Bearing Category Cylindrical Roller Bearing
Origin of Country Germany
d 90 mm
D 140 mm
B 37 mm
Mass 2.05 kg

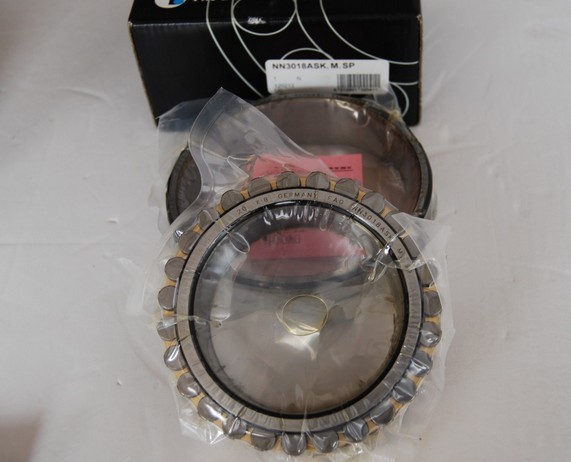

FAG NN3018-AS-K-M-SP Cylindrical Roller Bearings,Double Row 0   FAG NN3018-AS-K-M-SP Cylindrical Roller Bearings,Double Row 1

Cylindrical roller bearings of this design are double row precision bearings for machine tools. They allow radially rigid, high precision bearing arrangements and are principally used to give radial support for main spindles.

The bearings comprise solid outer rings without ribs, solid inner rings with three ribs and cylindrical roller and cage assemblies with solid brass cages. For optimum setting of the radial internal clearance, the inner ring has a tapered bore with a bore taper 1:12. The cylindrical roller bearings are separable and are therefore easier to fit and dismantle. Both bearing rings can be given a tight fit by this process.
Bearing d D B
mm mm mm
NN3006-AS-K-M-SP 30 55 19
NN3007-AS-K-M-SP 35 62 20
NN3008-AS-K-M-SP 40 68 21
NN3009-AS-K-M-SP 45 75 23
NN3010-AS-K-M-SP 50 80 23
NN3011-AS-K-M-SP 55 90 26
NN3012-AS-K-M-SP 60 95 26
NN3013-AS-K-M-SP 65 100 26
NN3014-AS-K-M-SP 70 110 30
NN3015-AS-K-M-SP 75 115 30
NN3016-AS-K-M-SP 80 125 34
NN3017-AS-K-M-SP 85 130 34
NN3018-AS-K-M-SP 90 140 37
NN3019-AS-K-M-SP 95 145 37
NN3020-AS-K-M-SP 100 150 37
NN3021-AS-K-M-SP 105 160 41
NN3022-AS-K-M-SP 110 170 45
NN3024-AS-K-M-SP 120 180 46
NN3026-AS-K-M-SP 130 200 52
NN3028-AS-K-M-SP 140 210 53
NN3030-AS-K-M-SP 150 225 56
NN3032-AS-K-M-SP 160 240 60
NN3034-AS-K-M-SP 170 260 67
NN3036-AS-K-M-SP 180 280 74
NN3038-AS-K-M-SP 190 290 75
NN3040-AS-K-M-SP 200 310 82
NN3044-AS-K-M-SP 220 340 90
NN3048-AS-K-M-SP 240 360 92
NN3052-AS-K-M-SP 260 400 104
NN3056-AS-K-M-SP 280 420 106
NN3060-AS-K-M-SP 300 460 118
NN3064-AS-K-M-SP 320 480 121
NN3068-AS-K-M-SP 340 520 133
NN3072-AS-K-M-SP 360 540 134
NN3076-AS-K-M-SP 380 560 135
NN3080-AS-K-M-SP 400 600 148
NN3084-AS-K-M-SP 420 620 150
NN3088-AS-K-M-SP 440 650 157
NN3092-AS-K-M-SP 460 680 163
NN3096-AS-K-M-SP 480 700 165
NN30/500-AS-K-M-SP 500 720 167

Available Designs:

Suffix Description Design
A Modified internal construction Standard
K Tapered bore, taper 1:12
M Solid brass cage, roller-guided
S Lubrication groove and lubrication holes in outer ring
SP Tolerance class SP
