FAG NU314E.M1 Cylindrical Roller Bearings,Single Row

  • FAG NU314E.M1 Cylindrical Roller Bearings,Single Row
Lugar de origen Alemania
Nombre de la marca FAG
Número de modelo Nu314e.m1
Cantidad de orden mínima 1
Precio US$25
Detalles de empaquetado Cinturón de color+estuche de madera
Tiempo de entrega 3 días en stock; dentro de los 20 días para la fabricación de pedidos
Condiciones de pago T/T; Western Union; Paypal
Capacidad de la fuente 10000 pcs/mes

Póngase en contacto conmigo para muestras y cupones gratis.

WhatsApp:0086 18588475571

Veloz: 0086 18588475571

Skype: sales10@aixton.com

Si tiene alguna preocupación, ofrecemos ayuda en línea las 24 horas.

x
Datos del producto
Deja un mensaje
Descripción de producto

FAG NU314E.M1 Cylindrical Roller Bearings,Singlle Row,with cage,separable

Bearing Model NU314E.M1
Brand FAG
Bearing Category Cylindrical Roller Bearing
Origin of Country Germany
d 70 mm
D 150 mm
B 35 mm
Mass 2.8 kg

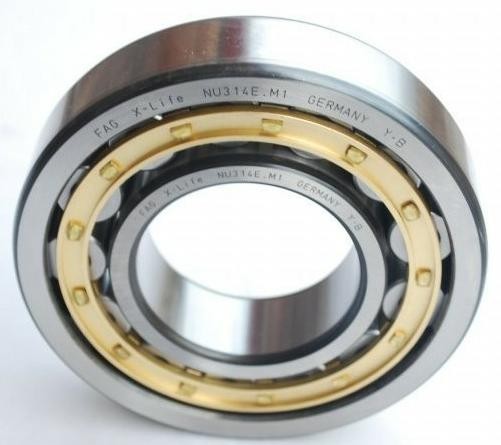

FAG NU314E.M1 Cylindrical Roller Bearings,Single Row 0                 FAG NU314E.M1 Cylindrical Roller Bearings,Single Row 1

Cylindrical roller bearings of this design are double row precision bearings for machine tools. They allow radially rigid, high precision bearing arrangements and are principally used to give radial support for main spindles.

The bearings comprise solid outer rings without ribs, solid inner rings with three ribs and cylindrical roller and cage assemblies with solid brass cages. For optimum setting of the radial internal clearance, the inner ring has a tapered bore with a bore taper 1:12. The cylindrical roller bearings are separable and are therefore easier to fit and dismantle. Both bearing rings can be given a tight fit by this process.

Available Designs:

Suffix Description
C3 -Radial internal clearance larger than normal
C4 -Radial internal clearance larger than C3
J30P -Black oxide coated
E -Increased capacity design
EX -Increased capacity design, design modified in accordance with standard (parts from these bearings must not be interchanged with parts from bearings of the same size of the previous design E)
M1 -Solid brass cage, two-piece, roller-guided
TVP2 -Solid window cage made from glass fibre reinforced polyamide PA66
JP3 -Sheet steel window cage, single-piece, roller-guided
MP1A -Solid brass cage, single-piece, rib-guided on outer ring
MP1B -Machined brass cage, single-piece, rib-guided on inner ring
M1A -Solid brass cage, two-piece, rib-guided on outer ring
M1B -Solid brass cage, two-piece, rib-guided on inner ring
FAG Bearing d D B
mm mm mm
NU303-E-TVP2 17 47 14
NU304-E-TVP2 20 52 15
NU305-E-TVP2 25 62 17
NU306-E-TVP2 30 72 19
NU307-E-TVP2 35 80 21
NU308-E-TVP2 40 90 23
NU309-E-TVP2 45 100 25
NU310-E-TVP2 50 110 27
NU311-E-TVP2 55 120 29
NU312-E-TVP2 60 130 31
NU313-E-TVP2 65 140 33
NU314-E-TVP2 70 150 35
NU315-E-TVP2 75 160 37
NU316-E-TVP2 80 170 39
NU317-E-TVP2 85 180 41
NU318-E-TVP2 90 190 43
NU319-E-TVP2 95 200 45
NU320-E-TVP2 100 215 47
NU322-E-TVP2 110 240 50
NU324-E-TVP2 120 260 55
NU326-E-TVP2 130 280 58
NU328-E-TVP2 140 300 62
NU330-E-M1 150 320 65
NU332-E-M1 160 340 68
NU334-E-TB-M1 170 360 72
NU336-E-TB-M1 180 380 75
NU338-E-TB-M1 190 400 78
NU340-E-TB-M1 200 420 80
NU344-E-TB-M1 220 460 88
NU348-E-TB-M1 240 500 95
NU352-E-TB-M1 260 540 102
NU356-E-TB-M1 280 580 108
