With dimension 280x410x300mm rolling mill bearing FCD5682300

  • With dimension 280x410x300mm rolling mill bearing FCD5682300
  • With dimension 280x410x300mm rolling mill bearing FCD5682300
  • With dimension 280x410x300mm rolling mill bearing FCD5682300
  • With dimension 280x410x300mm rolling mill bearing FCD5682300
  • With dimension 280x410x300mm rolling mill bearing FCD5682300
Lugar de origen Porcelana
Certificación ISO9001
Número de modelo FCD5682300
Cantidad de orden mínima 1 PCS
Precio ASK
Detalles de empaquetado Color Cinturón y estuche de madera o solicitud del cliente
Tiempo de entrega 3-5 días para acciones; dentro de los 15 días por fabricación de pedidos
Condiciones de pago T/T; Western Union; Paypal
Capacidad de la fuente 5000 pcs/mes

Póngase en contacto conmigo para muestras y cupones gratis.

WhatsApp:0086 18588475571

Veloz: 0086 18588475571

Skype: sales10@aixton.com

Si tiene alguna preocupación, ofrecemos ayuda en línea las 24 horas.

x
Datos del producto
Deja un mensaje
Descripción de producto

FCD5682300 rolling mill bearing 280x410x300 mm,cylindrical roller bearing,four row

--for interference fit on the roll neck,with circumferential lubricating grooves and lubricating holes on the outer ring

FCD5682300 bearing details:
Bearing Main Dimension(mm) Load Rating(kN) Mass
Design d D B F Dyn.C Stat.Co kg
FCD5682300 280 410 300 313 3520 7450 135
  FAG code
314897/VJ202 code
  NTN code
  NSK code
FCD5682300 China Code

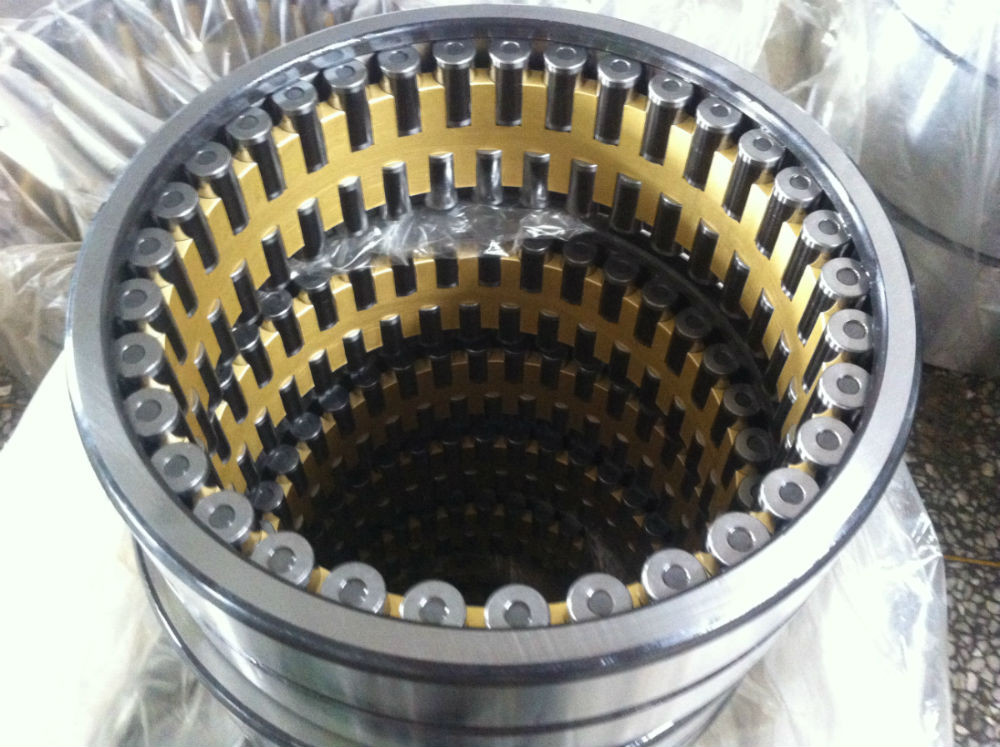

With dimension 280x410x300mm rolling mill bearing FCD5682300 0
Description:
Four row cylindrical roller bearings can carry much heavier radial load and shock load. They have higher precision and can be applied in the equipment which runs with high rotational speed. Grinding the surface of raceway and roller at same time after the inner ring is pressed on roller neck, it favors the improvement of rolling precision and the free adjustment of mounting clearance of bearings. These bearings are mostly applied to the working roller and backup roller of rolling mills and some other cases.
FC: double outer rings, single inner ring, and inner without flange.
FCD: double outer rings, double inner rings, and inner ring without flange.
FCDP: double outer rings, only have center flange, but with loose rib, double inner ring, inner without flange.

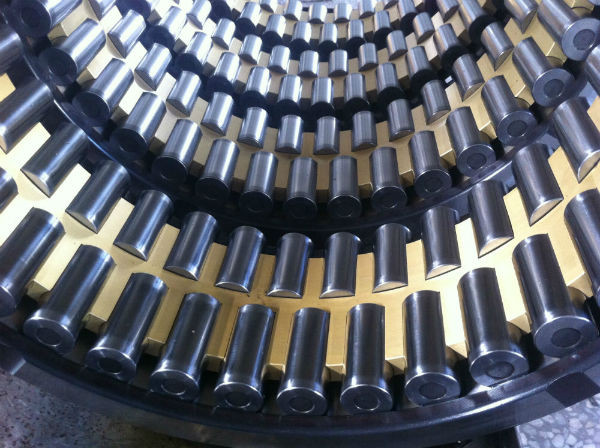

With dimension 280x410x300mm rolling mill bearing FCD5682300 1

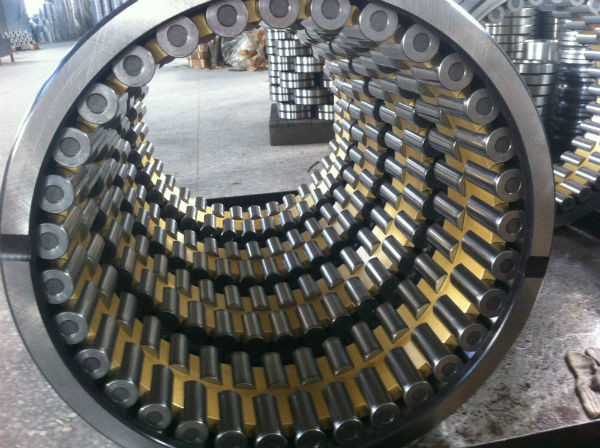

With dimension 280x410x300mm rolling mill bearing FCD5682300 2

Part of Rolling Mill Bearings table:
Fag code Fag old code  code Nsk-code   Ntn-code   Koyo-code
Z-502894.02.ZL 502894B 314190 160RV2301 4R3226 314190
Z-504547.ZL 504547 635194
Z-506962.ZL 506962 313891A 150RV2302 4R3040 313891-1
Z-507333.ZL 507333 313839 220RV3101 4R4426 313837A
Z-507336.ZL 507336 313823 260RV3701 4R5208 313823
Z-507339.ZL 507339 313822 280RV3901 4R5611 313822
Z-507344.ZL 507344 314385 200RV2804 4R4048 40FC28170
Z-507536.ZL 507536 313812 180RV2601 4R3628 313812W
Z-507735.ZL 507735 313651 190RV2601 4R3820 38FC26168-1
Z-508657.ZL 508657 314199B 190RV2701 4R3821 314199
Z-508726.ZL 508726 313893 200RV2802
Z-508727.ZL 508727 313824 230RV3301 4R4610 313824
Z-510150.02.ZL 510150B 315189A 160RV2302 4R3232
Z-511605.ZL 511605 314625 145RV2101 4R2906 29FC21155
Z-512580.ZL 512580 313811 200RV2901 4R4041 313811
Z-512764.ZL 512764 313924A 145RV2201 4R2904 313924
Z-522742.ZL 522742 314553   4R4039 314553
Z-524289.02.ZL 524289B 314484D 300RV4221 4R6020 4CR300
Z-527104.ZL 527104 314719 280RV3903
Z-527634.ZL 527634 314485 340RV4801 4R6819 68FC48350D
Z-529468.N12BA   529468.N12BA 315642/VJ202
Z-543975.ZL 543975 314486A 370RV5211
Z-804868.ZL-N12BA   804868.N12BA 314997VJ/202
