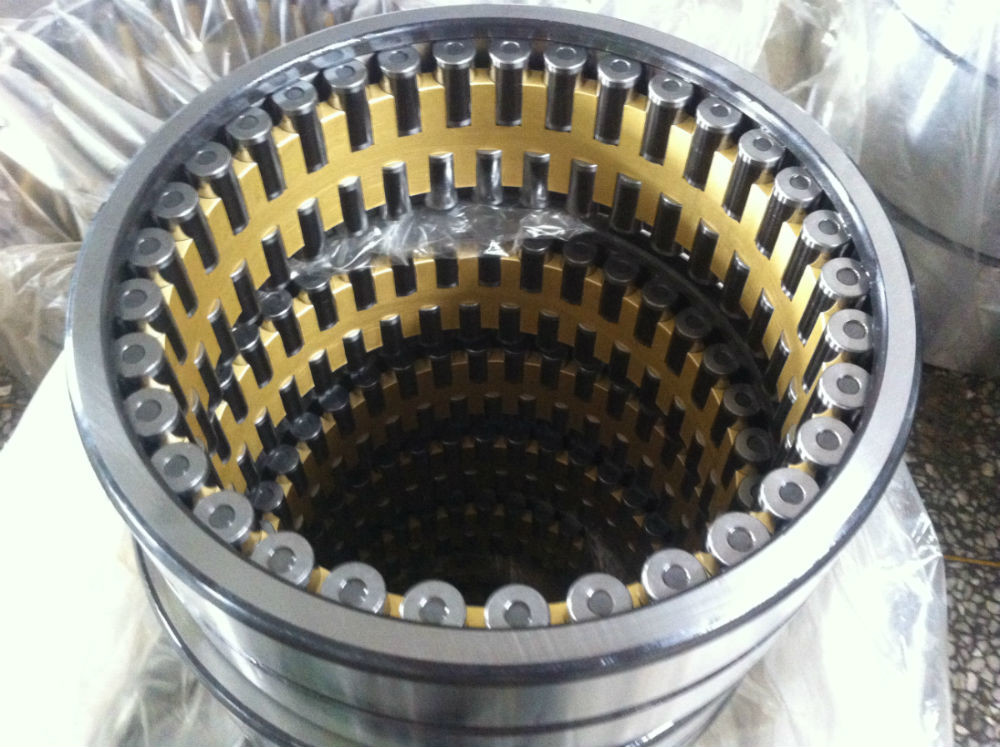

Four row cylindrical roller bearings for rolling mills 507336

  • Four row cylindrical roller bearings for rolling mills 507336
  • Four row cylindrical roller bearings for rolling mills 507336
  • Four row cylindrical roller bearings for rolling mills 507336
  • Four row cylindrical roller bearings for rolling mills 507336
Lugar de origen Porcelana
Nombre de la marca Neutral or OEM
Certificación ISO9001
Número de modelo 507336
Cantidad de orden mínima 1 PCS
Precio US$385
Detalles de empaquetado Empaque industrial o solicitud del cliente
Tiempo de entrega 3 días en stock; dentro de los 10 días personalizados
Condiciones de pago T/T;Western Union;Paypal;L/C
Capacidad de la fuente 5000 pcs/mes

Póngase en contacto conmigo para muestras y cupones gratis.

WhatsApp:0086 18588475571

Veloz: 0086 18588475571

Skype: sales10@aixton.com

Si tiene alguna preocupación, ofrecemos ayuda en línea las 24 horas.

x
Datos del producto
Tipo de sello Abierto Número de fila Cuatro filas
Diámetro 260 mm Diámetro exterior 370 milímetros
Ancho 220 mm F (diámetro exterior del anillo interno) 292 milímetros
Peso 76 KILOGRAMOS Número de existencias 53 PCS (2013-12-10)
Deja un mensaje
Descripción de producto

Cylindrical roller bearing,four row 507336(FC5274220)

Bearing name: 507336 bearings
New Model: 507336
d : 260mm
D : 370mm
B : 2200mm
Fw : 292mm
Load Rating(kN)
Dyn.C 2160
Stat Co 4650
Weight(kg) 76.5
bearing: 313823
FAG bearing: 507336
NTN bearing: 4R5217
NSK bearing: 260RV3701
Bearing class: Cylindrical Roller Bearings, four row
Remarks: Please contact us for other detail

Four row cylindrical roller bearings can carry much heavier radial load and shock load. They have higher precision and can be applied in the equipment which runs with high rotational speed. Grinding the surface of raceway and roller at same time after the inner ring is pressed on roller neck, it favors the improvement of rolling precision and the free adjustment of mounting clearance of bearings. These bearings are mostly applied to the working roller and backup roller of rolling mills and some other cases.
FC: double outer rings, single inner ring, and inner without flange.
FCD: double outer rings, double inner rings, and inner ring without flange.
FCDP: double outer rings, only have center flange, but with loose rib, double inner ring, inner without flange.

Fag code Fag old code  code Nsk-code   Ntn-code   Koyo-code
Z-502894.02.ZL 502894B 314190 160RV2301 4R3226 314190
Z-504547.ZL 504547 635194
Z-506962.ZL 506962 313891A 150RV2302 4R3040 313891-1
Z-507333.ZL 507333 313839 220RV3101 4R4426 313837A
Z-507336.ZL 507336 313823 260RV3701 4R5208 313823
Z-507339.ZL 507339 313822 280RV3901 4R5611 313822
Z-507344.ZL 507344 314385 200RV2804 4R4048 40FC28170
Z-507536.ZL 507536 313812 180RV2601 4R3628 313812W
Z-507735.ZL 507735 313651 190RV2601 4R3820 38FC26168-1
Z-508657.ZL 508657 314199B 190RV2701 4R3821 314199
Z-508726.ZL 508726 313893 200RV2802
Z-508727.ZL 508727 313824 230RV3301 4R4610 313824
Z-510150.02.ZL 510150B* 315189A 160RV2302 4R3232
Z-511605.ZL 511605 314625 145RV2101 4R2906 29FC21155
Z-512580.ZL 512580 313811 200RV2901 4R4041 313811
Z-512764.ZL 512764 313924A 145RV2201 4R2904 313924
Z-522742.ZL 522742 314553   4R4039 314553
Z-524289.02.ZL 524289B* 314484D 300RV4221 4R6020 4CR300
Z-527104.ZL 527104 314719 280RV3903
Z-527634.ZL 527634 314485 340RV4801 4R6819 68FC48350D
Z-529468.N12BA   529468.N12BA 315642/VJ202
Z-543975.ZL 543975 314486A 370RV5211
Z-804868.ZL-N12BA   804868.N12BA 314997VJ/202

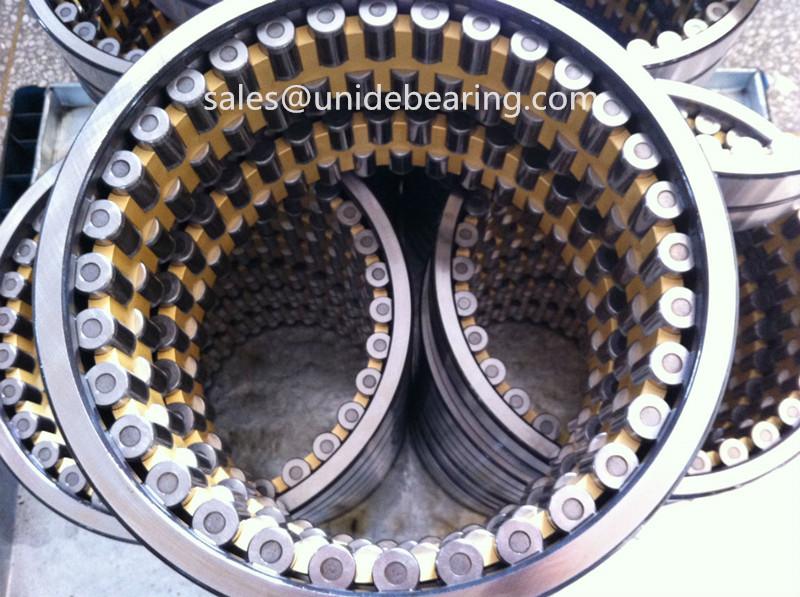

Four row cylindrical roller bearings for rolling mills 507336 0

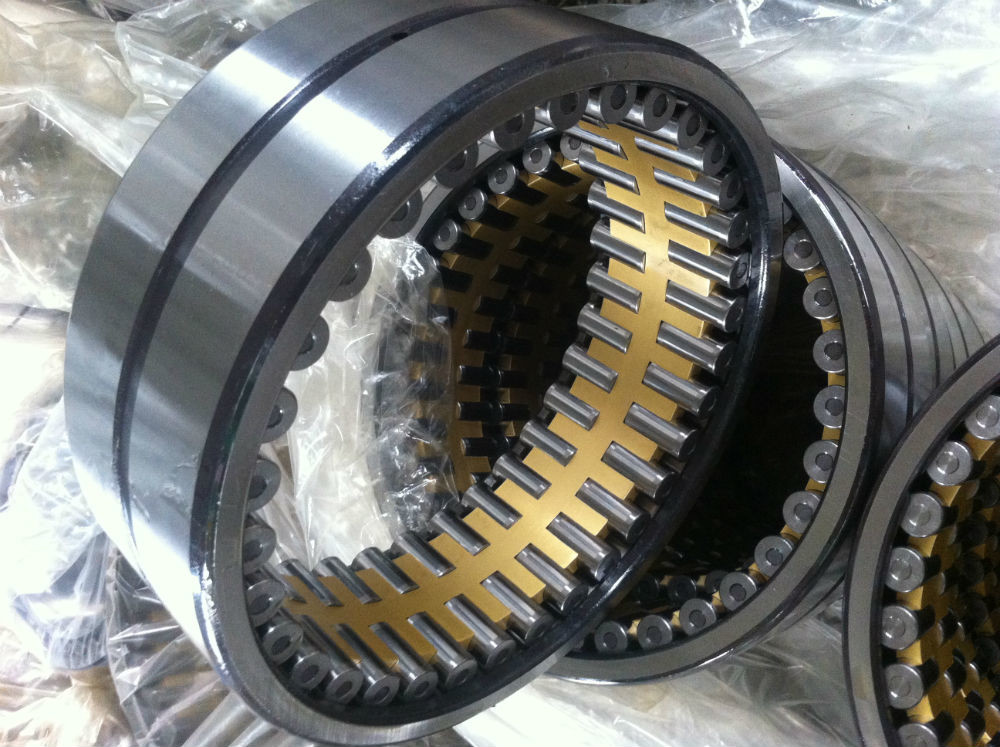

Four row cylindrical roller bearings for rolling mills 507336 1

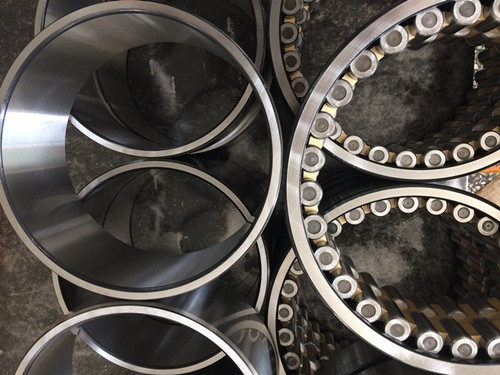

Four row cylindrical roller bearings for rolling mills 507336 2
