Heavy-duty split spherical roller bearing BS2B243114

  • Heavy-duty split spherical roller bearing BS2B243114
Lugar de origen Porcelana
Certificación ISO9001
Número de modelo BS2B243114
Cantidad de orden mínima 1
Detalles de empaquetado Empaque industrial o solicitud del cliente
Tiempo de entrega 5-7 días para el número de stock; dentro de los 30 días a medida que la fabricación del pedido
Condiciones de pago T/T;Western Union;Paypal;L/C

Póngase en contacto conmigo para muestras y cupones gratis.

WhatsApp:0086 18588475571

Veloz: 0086 18588475571

Skype: sales10@aixton.com

Si tiene alguna preocupación, ofrecemos ayuda en línea las 24 horas.

x
Datos del producto
Deja un mensaje
Descripción de producto

Split spherical roller bearing BS2B243114,with bore diamater 950mm,outer diameter 1250mm,width 420mm

Dimensions (metric)/mm d 950
D 1250
C 300
B 420
Bearing Model BS2B243114
Bearing Category spherical roller bearing
MA Split machined brass cage
Approx. Wgt. kg 1300

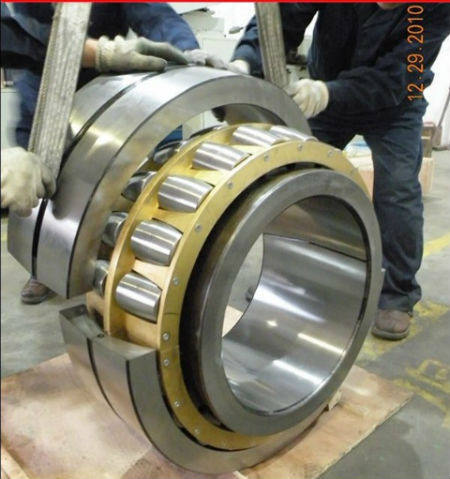

Heavy-duty split spherical roller bearing BS2B243114 0           Heavy-duty split spherical roller bearing BS2B243114 1

Split spherical roller bearings are primarily used for bearing positions which are difficult to access such as on long shafts which require support at several positions, or on cranked shafts.

Bearing Design:

Split spherical roller bearings have a cylindrical bore.The inner ring,outer ring and cage with the roller set are split in half.The split bearing rings are held together by screws.

Range of Applications:

belt drives/ships/conveyor plants/rolling mills/paper machines

The internal design of split spherical roller bearings:

Heavy-duty split spherical roller bearing BS2B243114 2

Heavy-duty split spherical roller bearing BS2B243114 3 Heavy-duty split spherical roller bearing BS2B243114 4

Heavy-duty split spherical roller bearing BS2B243114 5 Heavy-duty split spherical roller bearing BS2B243114 6
