Heavy-duty split spherical roller bearing 321528

  • Heavy-duty split spherical roller bearing 321528
Lugar de origen Porcelana
Certificación ISO9001
Número de modelo 321528
Cantidad de orden mínima 1
Detalles de empaquetado Empaque industrial o solicitud del cliente
Tiempo de entrega 5-7 días para el número de stock; dentro de los 30 días a medida que la fabricación del pedido
Condiciones de pago T/T;Western Union;Paypal;L/C

Póngase en contacto conmigo para muestras y cupones gratis.

WhatsApp:0086 18588475571

Veloz: 0086 18588475571

Skype: sales10@aixton.com

Si tiene alguna preocupación, ofrecemos ayuda en línea las 24 horas.

x
Datos del producto
Deja un mensaje
Descripción de producto

Split spherical roller bearing 321528,with bore diamater 900mm,outer diameter 1340mm,width 490mm

Dimensions (metric)/mm d 900
D 1340
C 325
B 490
Bearing Model 321528
Bearing Category spherical roller bearing
MA Split machined brass cage
Approx. Wgt. kg 1800

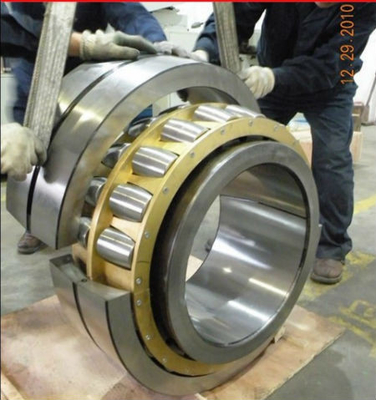

Heavy-duty split spherical roller bearing 321528 0           Heavy-duty split spherical roller bearing 321528 1

Split spherical roller bearings are primarily used for bearing positions which are difficult to access such as on long shafts which require support at several positions, or on cranked shafts.

Bearing Design:

Split spherical roller bearings have a cylindrical bore.The inner ring,outer ring and cage with the roller set are split in half.The split bearing rings are held together by screws.

Range of Applications:

belt drives/ships/conveyor plants/rolling mills/paper machines

The internal design of split spherical roller bearings:

Heavy-duty split spherical roller bearing 321528 2

Heavy-duty split spherical roller bearing 321528 3 Heavy-duty split spherical roller bearing 321528 4

Heavy-duty split spherical roller bearing 321528 5 Heavy-duty split spherical roller bearing 321528 6

Unide Bearing manufacture split spherical roller bearing 321528,adapted from high-grade raw material which guarantee the stable performance of the bearings during the usage.Inner and outer raceways are super-finished to improve the precision of the rotation.Please contact us for any inquiries: unidebearing@yahoo.com
