Four row taper roller bearings for rolling mills 535191

  • Four row taper roller bearings for rolling mills 535191
  • Four row taper roller bearings for rolling mills 535191
  • Four row taper roller bearings for rolling mills 535191
  • Four row taper roller bearings for rolling mills 535191
Lugar de origen Porcelana
Nombre de la marca KORTON NEUTRAL OEM
Certificación ISO9001
Número de modelo 535191
Cantidad de orden mínima 1 PCS
Precio ASK
Detalles de empaquetado Color Cinturón y estuche de madera o solicitud del cliente
Tiempo de entrega 1-3 días para acciones; dentro de los 30 días por fabricación de pedidos
Condiciones de pago T/T; Western Union; Paypal
Capacidad de la fuente 100 pcs/mes

Póngase en contacto conmigo para muestras y cupones gratis.

WhatsApp:0086 18588475571

Veloz: 0086 18588475571

Skype: sales10@aixton.com

Si tiene alguna preocupación, ofrecemos ayuda en línea las 24 horas.

x
Datos del producto
Diámetro D-Inner 300 mm Diámetro de la subterránea 424 mm
Bandeo b 310 milímetros Material Acero de cojinete de alto grado
Jaula J de acero estampado
Deja un mensaje
Descripción de producto

535191 rolling mill bearing 300x424x310 mm,taper roller bearing,four row

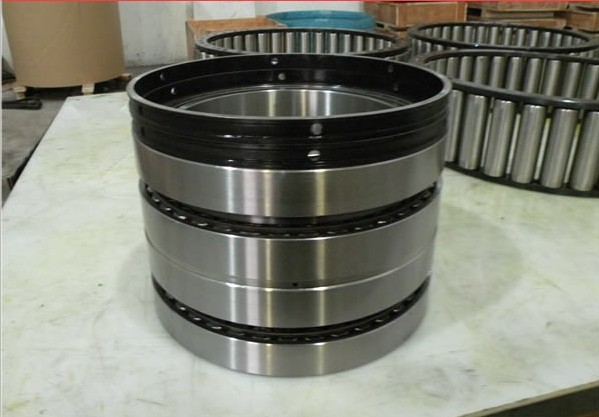

Four row taper roller bearings for rolling mills 535191 0

535191 bearing specfications:

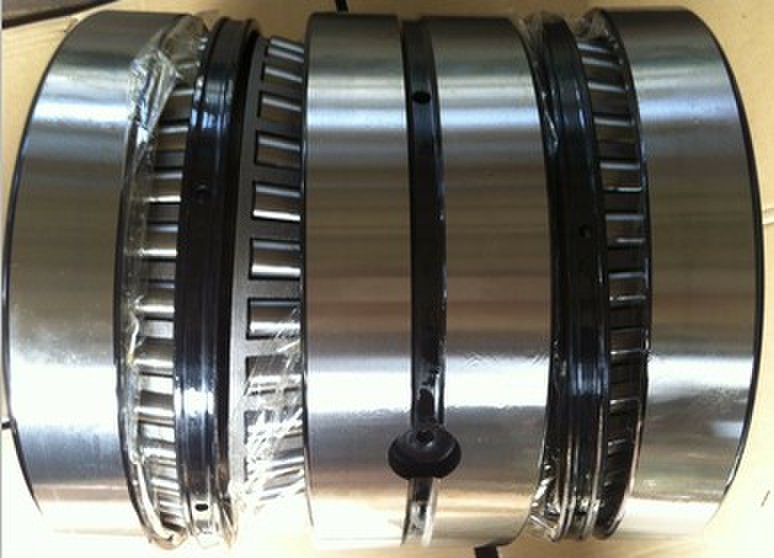

Bearing No. 535191 Four row taper roller bearings for rolling mills 535191 1
Main Dimension mm
Inside Dia-d 300
Outside Dia-D 424
Height 310
Mass(kg) 140
rsmin 5
OEM Service Yes
Cage J stamped steel
Tolerance As Request
Bearing Type Taper roller bearings
Row Number Four
Contact for offer sales@unidebearing.com
Interchange
FAG 535191
NTN
NSK
KOYO
Unide Code 382960X3


Description:

Four-row tapered roller bearings are used successfully worldwide for rolling mill bearing arrangements where rolling speeds are slow to moderate. They are mainly used in the working roll necks of hot or cold rolling mills, and roll neck of cogging mills. They usually clearance fit with roll necks to being mounted and dismounted conveniently.

We supplies many sizes of four row tapered roller bearings with integral radial shaft seals at both sides. They are available in several designs depending on bearing size as well as on the open (non-sealed) basic design.

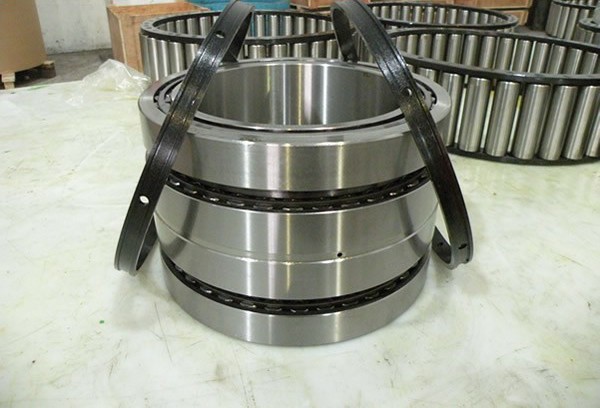

Four row taper roller bearings for rolling mills 535191 2

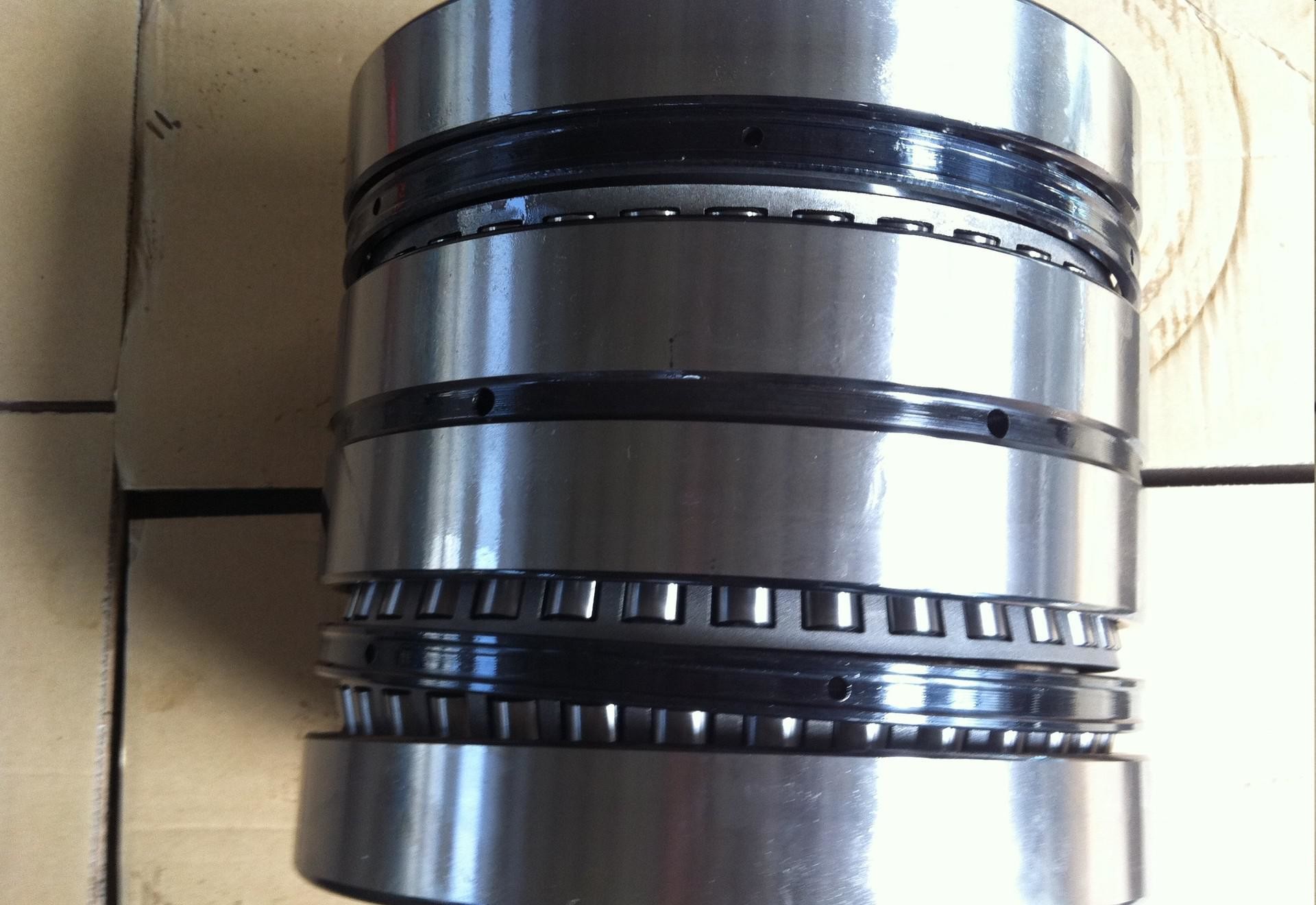

Four row taper roller bearings for rolling mills 535191 3
Part of FAG Rolling Mill Bearings table:
Bearing No D(mm) D(mm) H(mm) m(KG)
561419 200 282 206 41
526731 200 310 200 60
512055 205 320 205 54
567972 220 320 200 55
802105 220 340 305 100
802184 240 338 248 70
532028 240 360 218 81
540650 240 360 310 114
534751 240 410 270 150
508990A 245 380 254 104
802200 260 368 268 88
522614 260 380 200 79
512056 260 400 255 121
534480 260 400 345 163
802151 260 440 300 178
574281 280 395 288 115
548651 280 420 224 113
532029 280 420 250 105
802132 280 420 345 167
510039 280 460 324 197
535191 300 424 310 140
574613 300 460 248 156
802245 300 460 390 233
534753 300 500 350 280
576008 310 430 310 141
566230 320 440 335 153
802232 340 520 325 248
534754 350 590 420 485
523453 355 490 316 183
530758 360 510 380 260
572344 360 520 370 267
514166 360 540 325 270
546304 360 540 340 282
565625 380 560 325 282
802109 380 560 360 296
802109M 380 560 360 312
523695 380 620 388 427
510038 380 620 420 510
802205 390 510 350 183
802116 395 545 288.7 193
802074 400 540 280 177
561420 400 564 412 334
534284 400 600 355 365
575106 420 592 432 327
539120 420 620 355 370
510036 420 760 500 1003
546420 440 620 454 440
802166 440 650 355 390
802223 460 610 360 278
802208 460 625 421 370
537420 460 700 420 585
549349 460 760 520 950
802021 475 600 368 242
802034 475 620 380 220
533018 475 660 450 470
549928 480 700 420 545
802004 500 670 515 498
542738 500 705 515 655
532030 500 720 400 540
537903 500 720 420 564
537904 500 830 570 1250
546305 530 780 450 735
579827 530 880 544 1382
802005 533 810 450 810
565904 535 750 560 786
802202 540 690 400 375
539193 560 920 620 1690
577804 570 780 515 753
533792 570 810 590 975
568986 600 870 488 968
802250 620 800 365 466
534756 630 920 515 1130
800695 635 900 660 1404
802141M 645 1030 560 1847
802061M 647 1030 560 1839
802057M 650 915 674 1450
802060M 650 1030 560 1825
510033 660 855 320 472
534757 660 1070 650 2305
537905 670 1090 710 2702
566305 676 910 620 1150
802121M 710 900 410 638
802033M 750 950 410 712
572275 750 1130 690 2538
581213 750 1220 840 4105
533277 785 1040 560 1303
549321 840 1170 840 2870
522129 850 1360 910 5285
533780 950 1360 880 4250
802070AM 1070 1400 889.6 3690
577801 1320 1760 800 5151
521936 1370 1765 1050 6700
543378 1400 1820 1020 7295
533447 1500 1950 1230 9835
534898 1600 1950 1230 7870
