SKF Hydraulic Pump 729124

  • SKF Hydraulic Pump 729124
  • SKF Hydraulic Pump 729124
  • SKF Hydraulic Pump 729124
Lugar de origen Reino Unido
Nombre de la marca SKF
Número de modelo 729124
Cantidad de orden mínima 1 set
Precio $1-2600/set
Tiempo de entrega 2-3 días hábiles
Condiciones de pago T/t, unión occidental

Póngase en contacto conmigo para muestras y cupones gratis.

WhatsApp:0086 18588475571

Veloz: 0086 18588475571

Skype: sales10@aixton.com

Si tiene alguna preocupación, ofrecemos ayuda en línea las 24 horas.

x
Datos del producto
Deja un mensaje
Descripción de producto

100 MPa (14 500 psi)

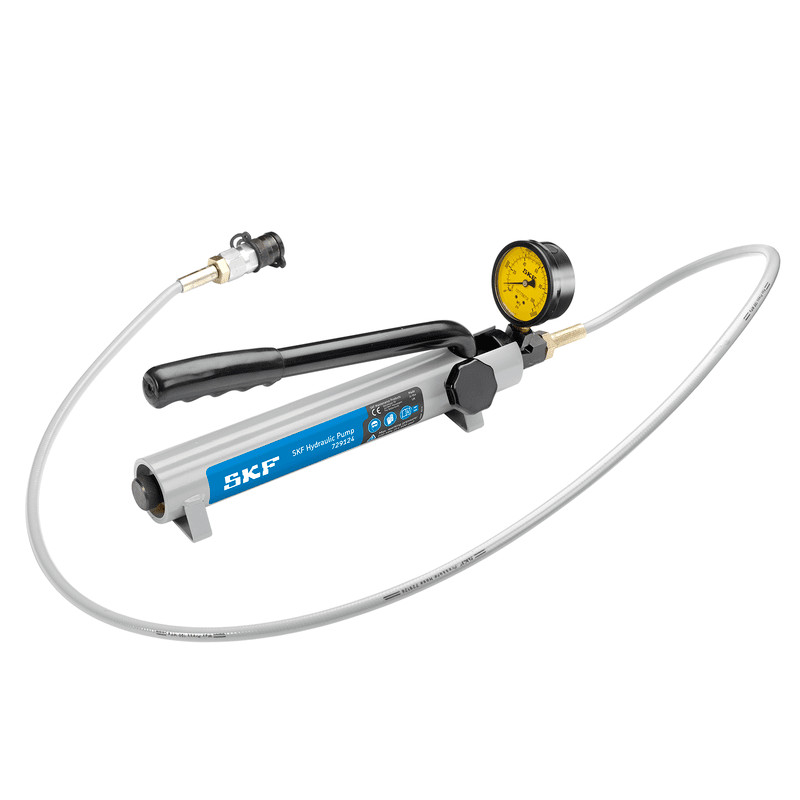

Hydraulic Pump 729124
The 729124 is mainly intended for Hydraulic
Nuts (≤ HMV 54E) to mount bearings or components
where a maximum pressure of 100 MPa (14 500 psi)
is required.
• Oil container capacity 250 cm 3 (15 in.. 3 )
• Fitted with a pressure gauge

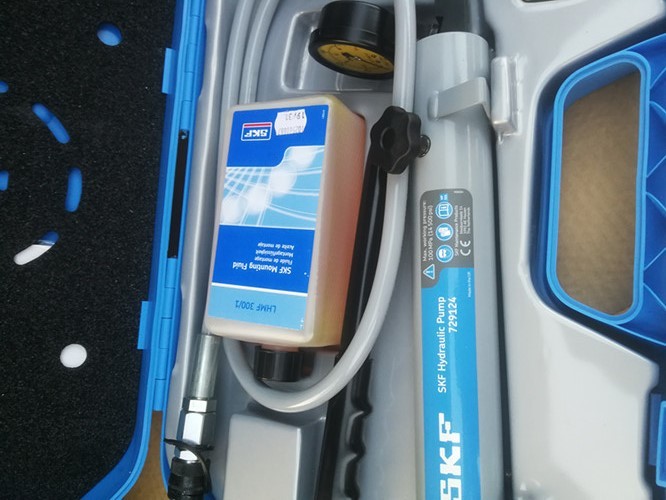

• Packed in a sturdy protective case
Applications
• Hydraulic Nuts ≤ HMV 54E
• Oil injection applications where the maximum pressure
is 100 MPa (14 500 psi)
• For applications where space does not permit the use of a quick
connect coupling and nipple, such as AOH sleeves, a special pump
design is available ( 729124 A)

SKF Hydraulic Pump 729124 0SKF Hydraulic Pump 729124 1

TECHNICAL DATA
Designations 729124
729124 A
Maximum pressure 100 MPa (14 500 psi)
Volume/stroke 0,5 cm3 (0.03 in.3)
Oil container capacity 250 cm3 (15 in.3)
Length of pressure hose 1 500 mm (59 in.)
Connection nipple G1/4 quick connection
Weight 3,5 kg (8 lb)
Designation 729124 DU
729124 including THGD 100
SPARE PARTS
Designation Description
729107 Nipple and washer
729108 Nipple for pressure gauge
729124-1 Hydraulic pump body
729124-3 Repair kit
729124-4 Release knob and spindle
729124-5 Oil container tube
1077587/2 Pressure gauge 100 MPa, 63mm diameter
729126 Flexible high pressure hose 100 MPa, 1.5m long
729831 A Quick connection coupling G1/4
729832 A Quick connection nipple G1/4
729124-CC Toolcase with inlay only for 729124
TDTC 1/C Toolcase without inlay
