SKF Hydraulic Pump 728619 E

  • SKF Hydraulic Pump 728619 E
  • SKF Hydraulic Pump 728619 E
  • SKF Hydraulic Pump 728619 E
  • SKF Hydraulic Pump 728619 E
  • SKF Hydraulic Pump 728619 E
Lugar de origen Suecia
Nombre de la marca SKF
Número de modelo 728619 E
Cantidad de orden mínima 1 set
Precio $1-1400/set
Tiempo de entrega 2-3 días hábiles
Condiciones de pago T/t, unión occidental

Póngase en contacto conmigo para muestras y cupones gratis.

WhatsApp:0086 18588475571

Veloz: 0086 18588475571

Skype: sales10@aixton.com

Si tiene alguna preocupación, ofrecemos ayuda en línea las 24 horas.

x
Datos del producto
Deja un mensaje
Descripción de producto

150 MPa (21 750 psi)

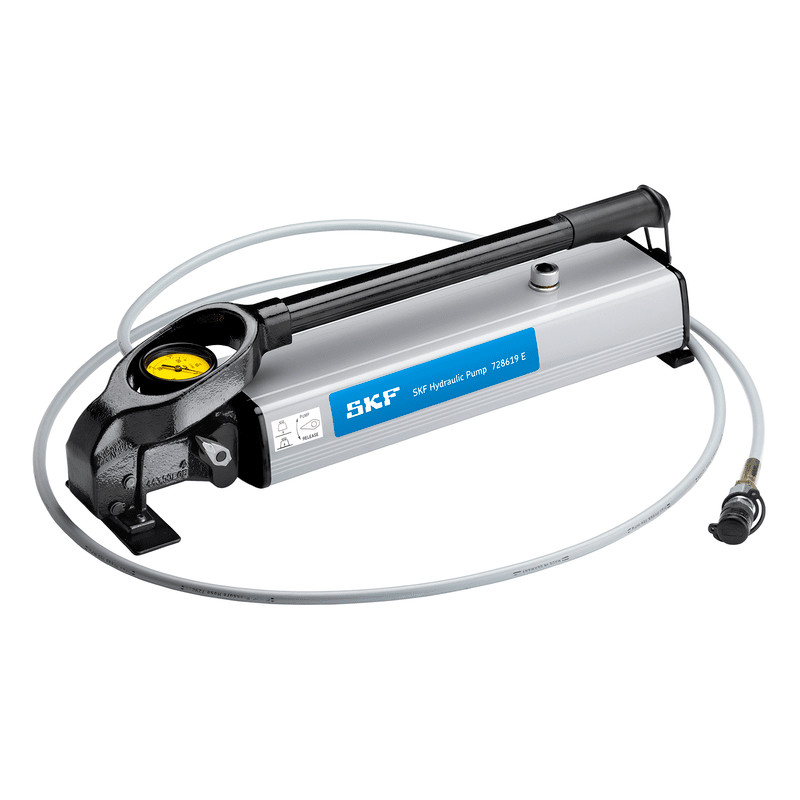

Hydraulic Pump 728619 E
The 728619 E is a two-stage pump suitable for
use with Supergrip Bolts and to mount bearings
or components where a maximum pressure of 150 MPa
(21 750 psi) is required.
• Oil container capacity 2 550 cm 3 (155 in. 3 )
• Two stage pressure pumping
• Fitted with a pressure gauge

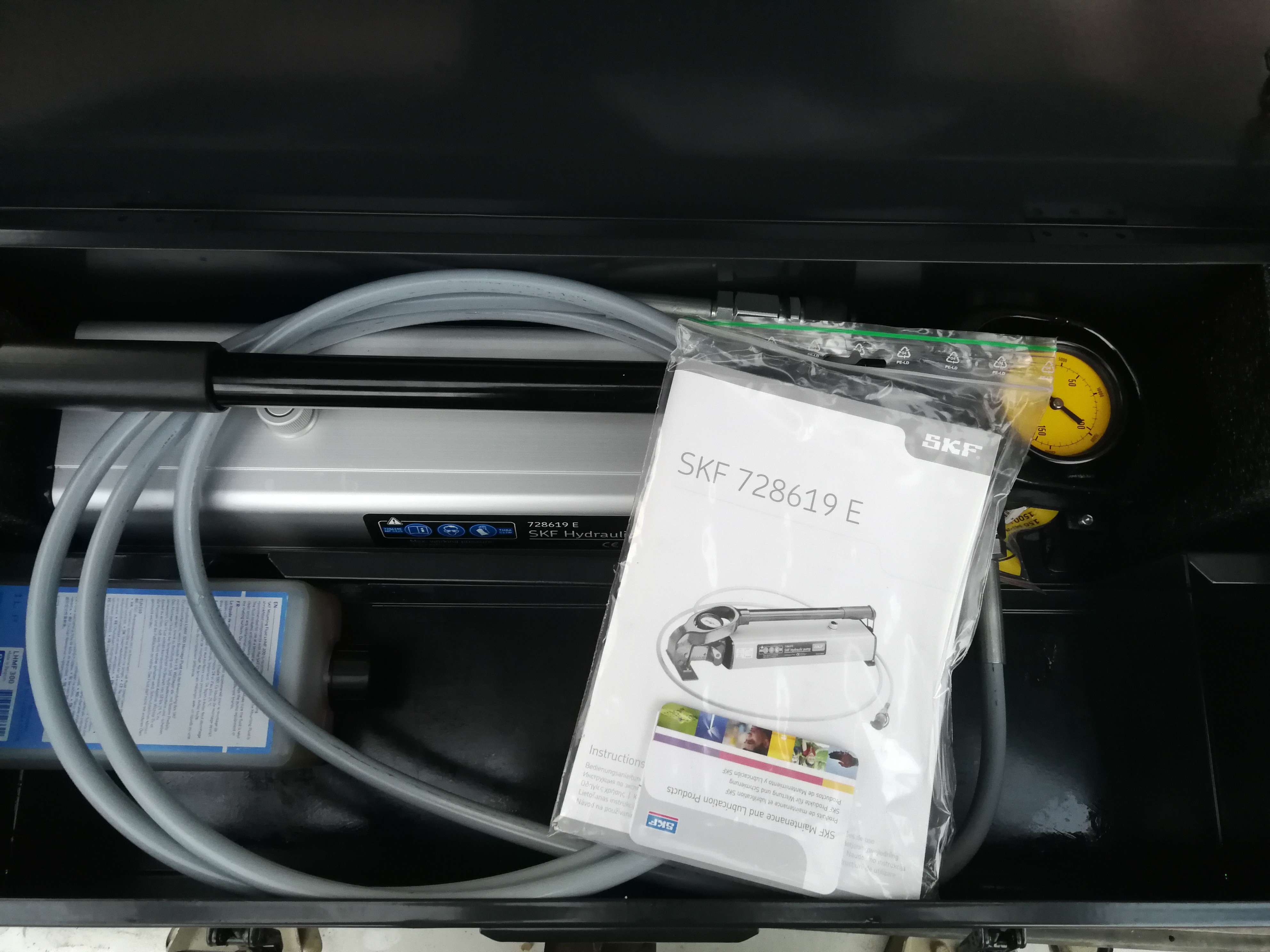

• Packed in a sturdy protective case
Applications
• Supergrip Bolts
• Oil injection applications where the maximum pressure
is 150 MPa (21 750 psi)
• All sizes Hydraulic Nuts

SKF Hydraulic Pump 728619 E 0



TECHNICAL DATA
Designation 728619 E
Maximum pressure 150 MPa (21 750 psi)
Volume/stroke 1st Stage 20 cm3 below 2,5 MPa (1.2 in.3 below 362 psi)
Volume/stroke 2nd Stage 1,00 cm3 above 2,5 MPa (0.06 in.3 above 362 psi)
Oil container capacity 2 400 cm3 (146.5 in.3)
Length of pressure hose 3 000 mm (118 in.)
Connection nipple G1/4 quick connection
Weight 11,4 kg (25 lb)
SPARE PARTS
Designation Description
728619 E-1 Hydraulic pump body
728619 E-3 Pressure gauge
728619 E-4 Double outlet adapter
728619 E-7 Repair kit
728619 E-9 Release valve assembly
728619-1 A Set of 5 springs
729831 A Quick connection coupling G1/4
729832 A Quick connection nipple G1/4
729834 Flexible high pressure hose 150 MPa, 3m long
LHMF 300/5 Mounting fluid (5 litre, 300 mm/s at 20 C)
LHDF 900/5 Dismounting fluid (5 litre, 900 mm/s at 20 C)
