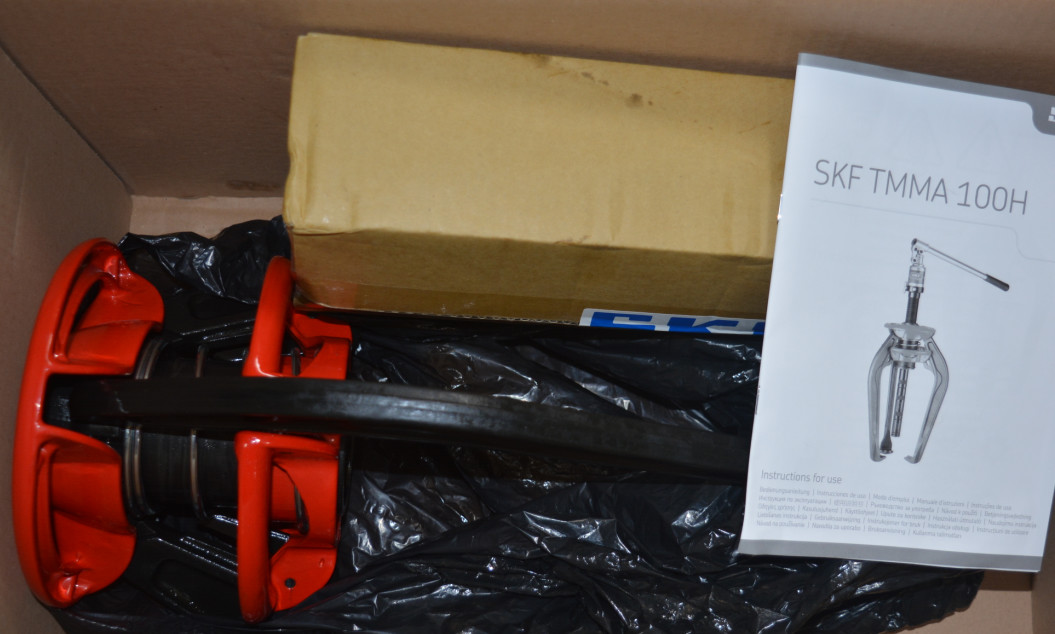

SKF Hydraulic jaw pullers EasyPull TMMA100H

  • SKF Hydraulic jaw pullers EasyPull TMMA100H
  • SKF Hydraulic jaw pullers EasyPull TMMA100H
Nombre de la marca SKF
Número de modelo TMMA 100H
Cantidad de orden mínima 1 set
Precio USD1-1500 per set
Detalles de empaquetado Estándar original
Tiempo de entrega 1-2 días
Condiciones de pago T/T, Western Union, Moneygram
Capacidad de la fuente 10 conjuntos por mes

Póngase en contacto conmigo para muestras y cupones gratis.

WhatsApp:0086 18588475571

Veloz: 0086 18588475571

Skype: sales10@aixton.com

Si tiene alguna preocupación, ofrecemos ayuda en línea las 24 horas.

x
Datos del producto
Deja un mensaje
Descripción de producto

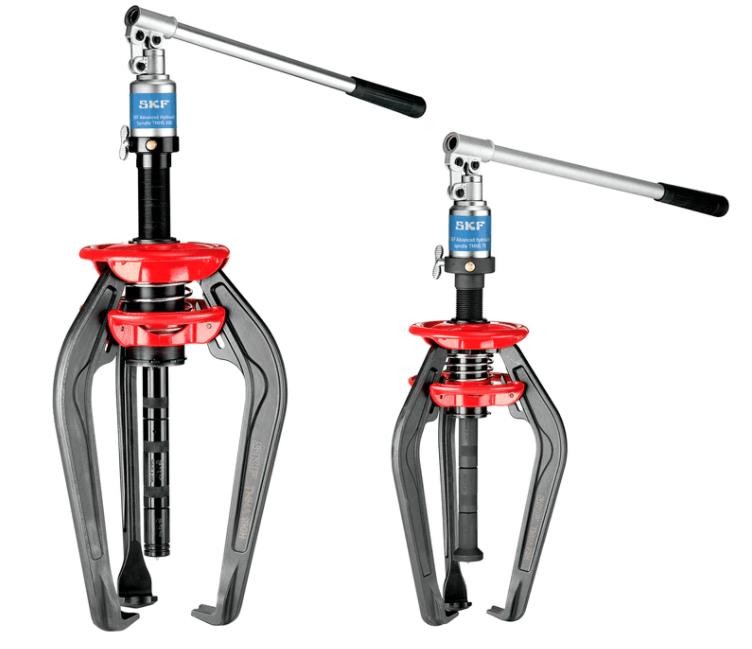

Hydraulic jaw pullers EasyPull

SKF Hydraulic jaw pullers EasyPull TMMA100H 0

Quick and effortless bearing dismounting

Equipped with spring-operated arms and a solid design, the SKF EasyPull is one of the most user-friendly and safe tools on the market. Ergonomically designed, the spring-operated arms enable the user to position the puller behind the component with just one movement.

  • Ready-to-use, integrated hydraulic cylinder, pump and puller - thus it is assembly-free and it is not necessary to purchase separate parts
  • Safety valve prevents spindles and pullers from being overloaded if excessive force is applied
  • The spring-loaded centre point on the hydraulic spindle allows easy centring of the puller on the shaft without damaging the shaft
  • The TMMA 100H has a maximum withdrawal force of 100 kN (11.2 ton US) and a long stroke of 80 mm (3.1 in), which facilitates most dismounting jobs in just one operation
  • For dismounting jobs requiring less force, SKF offers a 75 kN (8.4 ton US) version, the TMMA 75H with a maximum stroke of 75 mm (3 in)
  • Supplied with extension pieces and one nosepiece
TECHNICAL DATA TMMA 75H
General Width of grip external, minimum 52 mm (2 in.)
Width of grip external, maximum 200 (7.8 in.)
Effective arm length 200 mm (7.8 in.)
Maximum withdrawal force 75 kN (8.4 ton US)
Total weight 7.0 kg (15.4 lb)
Claw dimensions Claw height 9,8 mm (0.39 in.)
Claw length 18 mm (0.7 in.)
Claw width 28 mm (1.1 in.)
Force generator Hydraulic spindle TMHS 75
Piston stroke 75 mm (3.0 in.)
Body thread UN 1,25"x12
Diameter nose piece 35 mm (1.4 in.)

TECHNICAL DATA TMMA 100H
General Width of grip external, minimum 75 mm (3 in.)
Width of grip external, maximum 250 (9.8 in.)
Effective arm length 250 mm (9.8 in.)
Maximum withdrawal force 100 kN (11.2 ton US)
Total weight 13.2 kg (29 lb)
Claw dimensions Claw height 13,8 mm (0.54 in.)
Claw length 24 mm (0.9 in.)
Claw width 40 mm (1.6 in.)
Force generator Hydraulic spindle TMHS 100
Piston stroke 80 mm (3.1 in.)
Body thread N 1,5"x16
Diameter nose piece 30 mm (1.2 in.)

ACCESSORIES
Puller Designation Description
TMMA 75H TMMX 280 Puller protection blanket
TMMS 50 / TMMS 100 Tri section pulling plates
TMMA 100H TMMX 350 Puller protection blanket
TMMS 50 / TMMS 100 / TMMS 160 Tri section pulling plates

SPARE PARTS
Puller Designation Description
TMMA 75H TMMA 75H-1 Arm
TMMA 75H/80-3 Opening mechanism
TMHS 5T Hydraulics extension piece set
TMHS 75 Hydraulic spindle
TMMA 100H TMMA 100H-1 Arm
TMMA 100H/12-3 Opening mechanism
TMHS 8T Hydraulics extension piece set
TMHS 100 Hydraulic spindle
TMHS 100-1 Hydraulic spindle, 100 kN, spindle only
