Split spherical roller bearing BS2B243126

  • Split spherical roller bearing BS2B243126
Lugar de origen Porcelana
Certificación ISO9001
Número de modelo BS2B243126
Cantidad de orden mínima 1
Detalles de empaquetado Empaque industrial o solicitud del cliente
Tiempo de entrega 5-7 días para el número de stock; dentro de los 30 días a medida que la fabricación del pedido
Condiciones de pago T/T;Western Union;Paypal;L/C

Póngase en contacto conmigo para muestras y cupones gratis.

WhatsApp:0086 18588475571

Veloz: 0086 18588475571

Skype: sales10@aixton.com

Si tiene alguna preocupación, ofrecemos ayuda en línea las 24 horas.

x
Datos del producto
Deja un mensaje
Descripción de producto

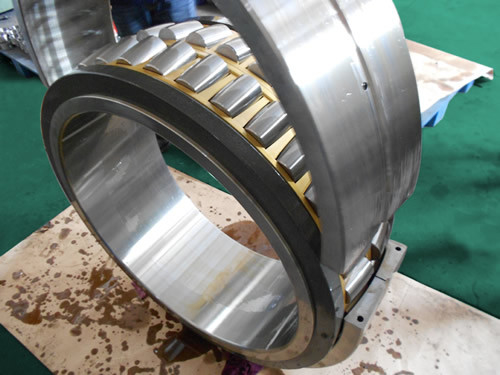

Split spherical roller bearing BS2B243126,with bore diamater 900mm,outer diameter 1180mm,width 400mm

Dimensions (metric)/mm d 900
D 1180
C 280
B 400
Bearing Model BS2B243126
Bearing Category spherical roller bearing
MA Split machined brass cage
Approx. Wgt. kg 1100

Split spherical roller bearing BS2B243126 0           Split spherical roller bearing BS2B243126 1

Split spherical roller bearings are primarily used for bearing positions which are difficult to access such as on long shafts which require support at several positions, or on cranked shafts.

Bearing Design:

Split spherical roller bearings have a cylindrical bore.The inner ring,outer ring and cage with the roller set are split in half.The split bearing rings are held together by screws.

Range of Applications:

belt drives/ships/conveyor plants/rolling mills/paper machines

The internal design of split spherical roller bearings:

Split spherical roller bearing BS2B243126 2

Split spherical roller bearing BS2B243126 3 Split spherical roller bearing BS2B243126 4

Split spherical roller bearing BS2B243126 5 Split spherical roller bearing BS2B243126 6

Unide Bearing manufacture split spherical roller bearing BS2B243126,adapted from high-grade raw material which guarantee the stable performance of the bearings during the usage.BS2B243126 Inner and outer raceways are super-finished to improve the precision of the rotation.Please contact us for split spherical roller bearing BS2B243126: unidebearing@yahoo.com
