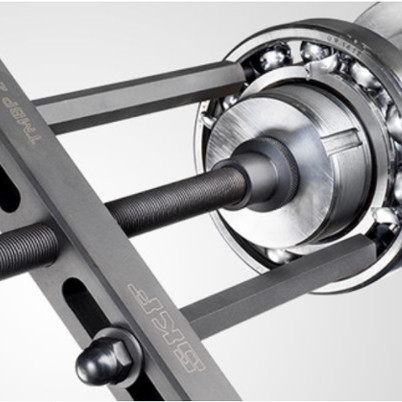

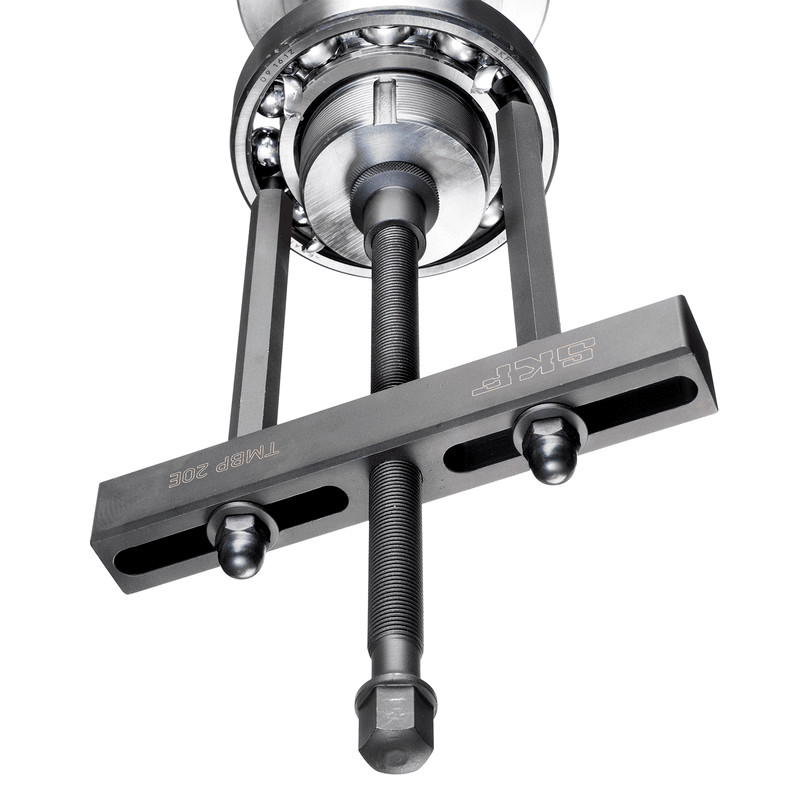

SKF blind housing puller kit TMBP20E

  • SKF blind housing puller kit TMBP20E
  • SKF blind housing puller kit TMBP20E
Lugar de origen Eslovenia
Nombre de la marca SKF
Número de modelo TMBP20E
Cantidad de orden mínima 1 set
Precio USD1-700/set
Detalles de empaquetado estuche de plástico por un set
Tiempo de entrega 1-2 días
Condiciones de pago T/t, unión occidental
Capacidad de la fuente 10 conjuntos por mes

Póngase en contacto conmigo para muestras y cupones gratis.

WhatsApp:0086 18588475571

Veloz: 0086 18588475571

Skype: sales10@aixton.com

Si tiene alguna preocupación, ofrecemos ayuda en línea las 24 horas.

x
Datos del producto
Deja un mensaje
Descripción de producto

Removes bearing without dismantling machinery

The TMBP 20E is an adapter type puller for dismounting deep groove ball bearings in blind housings (i.e. when accessing the ball bearing is not possible through the outer ring or through the bore) with shaft dimensions between 30 mm and 160 mm (1.18 in and 6.3 in). The use of extension rods allows a long reach of up to 583 mm (23 in).

SKF blind housing puller kit TMBP20E 0

  • Allows a wide of range of deep groove ball bearings to be dismounted
  • Ball adapters designed for a long service life
  • Extension rods allow a reach of up to 583 mm (23 in.)
  • Spanner stop function on spindle for easy and safe handling
  • Self-locking nose piece helps minimise damage to shaft, and improves puller stability
  • Supplied in a sturdy carrying case

SKF blind housing puller kit TMBP20E 1

SKF blind housing puller kit TMBP20E 2

SUITABLE BEARINGS
SKF TMBP 20E is suitable for dismounting the following deep groove ball bearings
60.. series 62.. series 63.. series 64.. series 16… series
6021–6032 6213–6230 6309–6320 6406–6418 16026–16032
TECHNICAL DATA
Designation TMBP 20E
Effective arm length 147 - 547 mm (5.8 - 21.5 in.)
Maximum pulling force 55 kN (6.2 ton US)
Dimensions of case 530 x 85 x 180 mm (20.9 x 3.4 x 7.0 in.)
Weight 6,5 kg (14.3 lb)
Set contents Adapters size A to F (2 pcs each)
2 x main rods (with nut support rings and nuts)
4 x extension rods
Spindle
Nose piece for spindle
Beam
ACCESSORIES
Designation Description
LGEV 2/ 0.035 Extremely high viscosity grease, 35 gram tube
TMMX 280 Puller protection blanket
SPATRE PARTS
Designation Description
TMBP 20E-CX Toolcase with inlay for TMBP 20E
TDTC 1/X Toolcase without inlay
