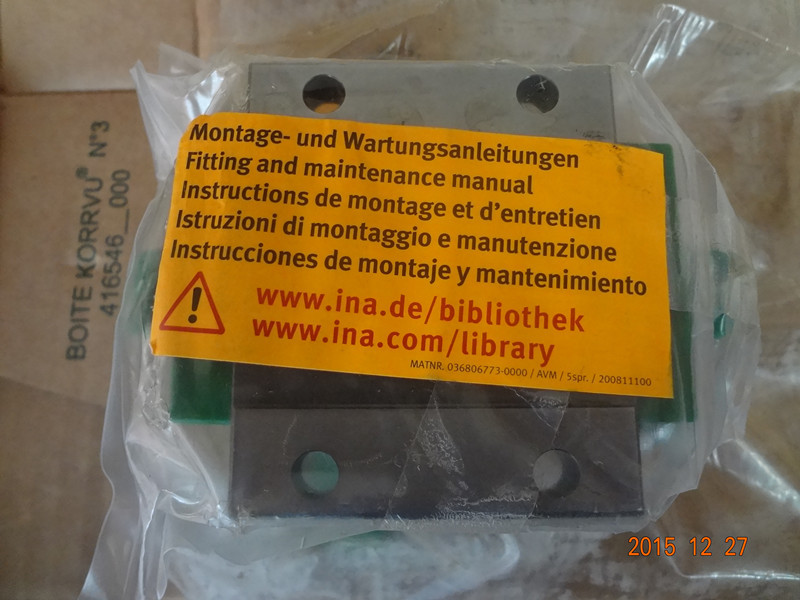

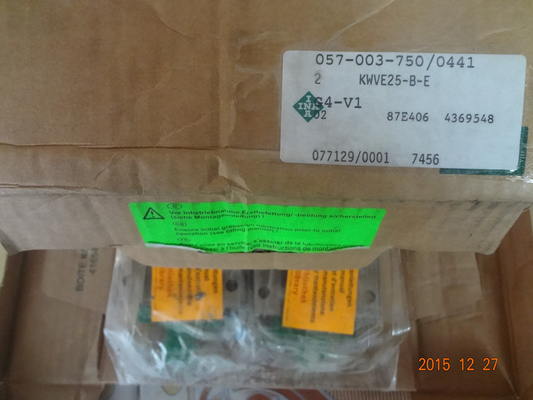

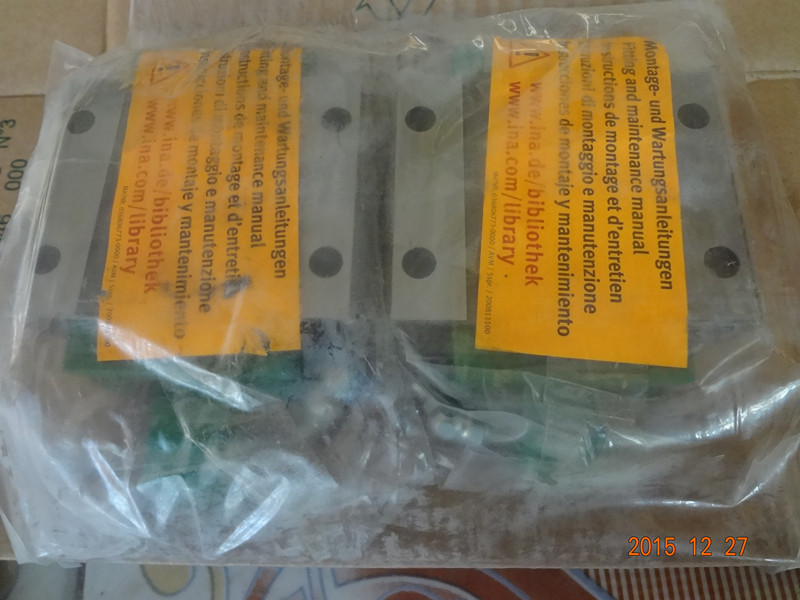

INA carriages KWVE25-B-E-G4-V1
Póngase en contacto conmigo para muestras y cupones gratis.
WhatsApp:0086 18588475571
Veloz: 0086 18588475571
Skype: sales10@aixton.com
Si tiene alguna preocupación, ofrecemos ayuda en línea las 24 horas.
xDatos del producto
Descripción de producto
INA carrisages KWVE25-B-E-G4-V1
-standard carriage,four-row,full complement ball set
![]()
| H | 36 mm | ||
| B | 70 mm | ||
| L | 83,3 mm | ||
| 1) | Locating face | ||
| 2) | Marking | ||
| 3) | Lubrication nipple with tapered head to DIN 71 412-B M6 is supplied loose | ||
| A1 | 23,5 mm | ||
| A2 | 6,5 mm | ||
| A3 | 11 mm | ||
| A4 | 6,5 mm | ||
| aL max | 53 mm | a L and a R are dependent on the length l max of the guideway | |
| aL min | 20 mm | a L and a R are dependent on the length l max of the guideway | |
| aR max | 53 mm | a L and a R are dependent on the length l max of the guideway | |
| aR min | 20 mm | a L and a R are dependent on the length l max of the guideway | |
| b | 23 mm | Tolerance: -0,005 / -0,03 | |
| G2 | M8 | For screws to DIN ISO 4762-12.9 | |
| Max. tightening torque in Nm: | |||
| M5 = 5,8 | |||
| M6 = 10 | |||
| M8 = 24 | |||
| M10 = 41 | |||
| M12 = 83 | |||
| M14 = 140 | |||
| If there is a possibility of settling, the fixing screws should be secured against rotation. | |||
| H1 | 5,1 mm | ||
| H4 | 10,9 mm | ||
| H5 | 5,25 mm | ||
| h | 18,7 mm | ||
| h1 | 8,7 mm | ||
| JB | 57 mm | ||
| JL | 45 mm | ||
| JL6 | 12,85 mm | ||
| JLZ | 40 mm | ||
| jL | 60 mm | ||
| K1 | M6 | For screws to DIN ISO 4762-12.9 | |
| Max. tightening torque in Nm: | |||
| M3 = 2,5 | |||
| M4 = 5 | |||
| M5 = 10 | |||
| M6 = 17 | |||
| M8 = 41 | |||
| M10 = 83 | |||
| M12 = 140 | |||
| M14 = 220 | |||
| M16 = 340 | |||
| If there is a possibility of settling, the fixing screws should be secured against rotation | |||
| K3 | M6 | For screws to DIN ISO 4762-12.9 | |
| Max. tightening torque in Nm: | |||
| M3 = 2,5 | |||
| M4 = 5 | |||
| M5 = 10 | |||
| M6 = 17 | |||
| M8 = 41 | |||
| M10 = 83 | |||
| M12 = 140 | |||
| M14 = 220 | |||
| M16 = 340 | |||
| If there is a possibility of settling, the fixing screws should be secured against rotation | |||
| K6 | M6 | For screws to DIN ISO 4762-12.9 | |
| Max. tightening torque in Nm: | |||
| M3 = 2,5 | |||
| M4 = 5 | |||
| M5 = 10 | |||
| M6 = 17 | |||
| M8 = 41 | |||
| M10 = 83 | |||
| M12 = 140 | |||
| M14 = 220 | |||
| M16 = 340 | |||
| If there is a possibility of settling, the fixing screws should be secured against rotation | |||
| L1 | 60,7 mm | ||
| LS | 1,65 mm | ||
| lmax | 2960 mm | Maximum length of single-piece guideways; longer guideways are supplied in several sections and are marked accordingly. | |
| Maximum single-piece guideway length of 6 m by agreement. | |||
| N3 | 5,5 mm | Maximum permissible screw depth for lubrication connector: | |
| 7 mm | |||
| N4 | 5,6 mm | Maximum permissible screw depth for lubrication connector: | |
| 7 mm | |||
| S | 0,8 mm | ||
| T5 | 10 mm | ||
| T6 | 10 mm | ||
| W6 | 6 mm | Width across flats | |
| mW | 0,68 kg | Mass of carriage | |
| mS | 2,7 kg/m | Mass of guideway | |
| Calculation of basic load rating according to DIN 636, | |||
| increased basic dynamic load rating possible on the basis of practical experience. | |||
| C | 17900 N | Basic dynamic load rating | |
| C0 | 37000 N | Basic static load rating | |
| M0x | 510 Nm | Static moment rating about X axis | |
| M0y | 395 Nm | Static moment rating about Y axis | |
| M0z | 395 Nm | Static moment rating about Z axis | |
