TIH 030m induction heater,allowing the heating of bearings weighing up to 40 kg (88 lb).

  • TIH 030m induction heater,allowing the heating of bearings weighing up to 40 kg (88 lb).
  • TIH 030m induction heater,allowing the heating of bearings weighing up to 40 kg (88 lb).
Lugar de origen Holanda
Número de modelo TIH 030M
Cantidad de orden mínima 1 set
Precio USD1-2205/SET
Detalles de empaquetado Original
Tiempo de entrega 1-3 días hábiles
Condiciones de pago T/t, unión occidental

Póngase en contacto conmigo para muestras y cupones gratis.

WhatsApp:0086 18588475571

Veloz: 0086 18588475571

Skype: sales10@aixton.com

Si tiene alguna preocupación, ofrecemos ayuda en línea las 24 horas.

x
Datos del producto
Max. Soportando el peso 40 kg (88 lb) Voltado 1 200–240 V/50–60 Hz/TIH 030M/230 V
Control de temperatura 20 a 250 ° C (68 a 482 ° F) Control de tiempo (minutos) 0–60
Max. Temperatura de calentamiento 2) 250 ° C (482 ° F) Voltado 2 100–120 V/50–60 Hz/TIH 030M/110 V
Deja un mensaje
Descripción de producto

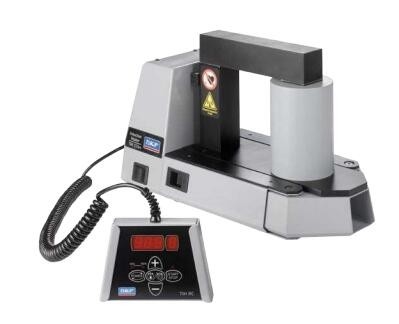

TIH 030m induction heaters

Making heat mounting easier for bearings

TIH 030m induction heater,allowing the heating of bearings weighing up to 40 kg (88 lb). 0

TIH 030m induction heater,allowing the heating of bearings weighing up to 40 kg (88 lb). 1
The bigger the bearing, the bigger the force needed to mount it. To compensate, induction heating has been a worldwide best practice for many bearing-mounting operations, notably cylindrical shafts and bearings that cannot be pressed easily onto a shaft or into a housing.

If heating is uneven, or if overheating occurs, the bearing could be altered metallurgically and dimensionally, possibly shortening the bearing service life. The Induction Heater TIH 030m can help. This proven unit delivers reliable, efficient heat according to pre-set, time-controlled levels.



Heat bearings safely

Featuring advanced power electronics, the induction heater TIH 030m can heat bearings up to 40 kg (88 lbs).

TIH series induction coils are positioned outside the heater's housing, enabling the bearing to be placed around the heater. It’s a significant innovation that helps reduce heating time and power consumption. Using TIH induction heaters also reduces mounting time and efforts and eliminates the risk of contamination often encountered when using oil baths.



Features and benefits

TIH 030m induction heater,allowing the heating of bearings weighing up to 40 kg (88 lb). 2
  • Compact lightweight design; just 20,9 kg (46.0 lb) facilitating portability
  • 2-step power setting and smaller yokes allow heating smaller bearings safely and at lower power consumption
  • Capable of heating a 28 kg (61.7 lb) bearing in just 20 minutes
  • Temperature mode pre-set at 110 °C (230 °F) to help prevent bearing over-heating
  • Automatic demagnetisation
