Medium induction heater with a 120 kg bearing heating capacity TIH100m

  • Medium induction heater with a 120 kg bearing heating capacity TIH100m
  • Medium induction heater with a 120 kg bearing heating capacity TIH100m
Lugar de origen Holanda
Número de modelo Tih 100m
Cantidad de orden mínima 1 set
Precio USD1-3500/SET
Detalles de empaquetado Original
Tiempo de entrega 1-3 días hábiles
Condiciones de pago T/t, unión occidental

Póngase en contacto conmigo para muestras y cupones gratis.

WhatsApp:0086 18588475571

Veloz: 0086 18588475571

Skype: sales10@aixton.com

Si tiene alguna preocupación, ofrecemos ayuda en línea las 24 horas.

x
Datos del producto
Max. Soportando el peso 120 kg (264 lb) Voltado 1 200–240 V/50–60 Hz/TIH 100M/230 V
Control de temperatura 20 a 250 ° C (68 a 482 ° F) Control de tiempo (minutos) 0–60
Max. Temperatura de calentamiento 2) 250 ° C (482 ° F)
Deja un mensaje
Descripción de producto

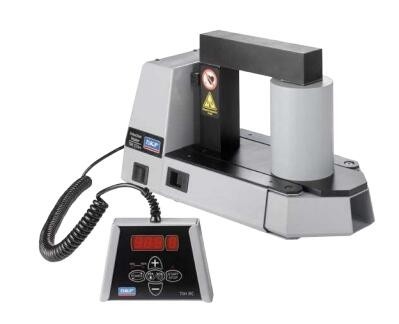

Medium induction heater

High heating capacity of up to 120 kg bearing

Medium induction heater with a 120 kg bearing heating capacity TIH100m 0

  Medium induction heater with a 120 kg bearing heating capacity TIH100m 1

The medium induction heater TIH 100m has the same high standards of efficiency and performance as the smaller heaterTIH 030m, combined with increased capacity. The advanced design of the power electronics allows features of accurate electric current control, cut-outs to avoid overheating, controls on rate of temperature increase, these are as some of the standard features in the TIH...m range.
Placing the induction coil outside the heater’s housing allows the heating of bearings weighing up to 120 kg (264 lb). The heater is equipped with thermal overheating protection to reduce the risk of damage to the induction coil and the electronics. In addition to temperature mode, the TIH 100m is equipped with a time mode for heating components other than bearings. The heater is supplied standard with three yokes and is available in two executions: 230V/50-60Hz or 400-460V/50-60Hz.

Features and benefits

Medium induction heater with a 120 kg bearing heating capacity TIH100m 2
  • Standard swivel arm for large size yoke
  • Capable of heating a 97 kg (213 lb) bearing in less than 20 minutes, saving time and energy
  • 2-step power setting and smaller yokes allow heating smaller bearings safely and at lower power consumption
  • Temperature mode pre–set at 110 °C (230 °F) to help prevent bearing over–heating
  • Automatic demagnetisation
Technical data
Designation TIH 100m

m20 performance 97 kg (213 lb)
Voltage, V/Hz
- TIH 100M/230V
- TIH 100M/MV		 230V/50-60Hz
400-460V/50-60Hz
Bearing:
- Maximum weight 120 kg (264 lb)
- Maximum bore diameter 20 - 400 mm (0.8 - 15.7 in.)
Temperature control:
- Range 0 - 250 °C (32 - 482 °F)
- Magnetic probe Yes, K-type
- Accuracy (electronics) ± 2 °C (± 3,6 °F)
Time control:
- Range 0 - 60 minutes
- Accuracy ± 0,01 sec.
Maximum heating temperature* 250°C (482 °F)
Thermometer mode Yes
Bearing mode Yes
Power reduction 2-step; 50 - 100%
Demagnetisation according
to norms (automatic)
Yes (<2 A/cm)
Can heat sealed bearings Yes
Can heat pre - greased bearings Yes
Error guiding codes Yes
Thermal overload protection Yes
Maximum magnetic flux 1,7 T
Control panel Key board with LED in remote control
Operating area (w × h) 155 × 205 mm (6.1 × 8.0 in.)
Coil diameter 110 mm (4.3 in.)
Dimensions (w × d × h) 570 × 230 × 350 mm
(22.4 × 9.0 × 13.7 in.)
Total weight, including yokes 42 kg (92 lb)
Maximum power consumption 3,6 kVA (230V)
  4,0-4,6 kVA (400-460V)
Number of standard yokes 3
Standard yokes 56 × 56 × 296 mm (2.2 × 2.2 × 11.7 in.),
for heating bearings with bore diameter of 80 mm (3.1 in.) and larger
  28 × 28 × 296 mm (1.1 × 1.1 × 11.7 in.),
for heating bearings with bore diameter of 40 mm (1.6 in.) and larger
  14 × 14 × 296 mm (0.6 × 0.6 × 11.7 in.),
for heating bearings with bore diameter of 20 mm (0.8 in.) and larger
Core cross section 56 × 56 mm (2.2 × 2.2 in.)
Yoke storage Yes, foldable
Sliding arm No
Swivel arm Yes, large yoke only
Cooling fan No
Housing material Steel and glass filled polyamide
* Depending on bearing or work piece weight. For higher temperatures, please contact .
